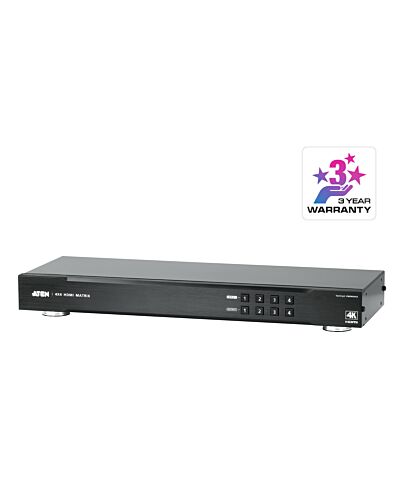

ATEN 4 x 4 4K HDMI Audio/Video Matrix Switch
£374.20
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
1x VM0404HA 4x4 4K HDMI Matrix Switch
1x 0AD6-1005-26EG Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Mounting Kit
1x User Instructions
1x VM0404HA 4x4 4K HDMI Matrix Switch
1x 0AD6-1005-26EG Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Mounting Kit
1x User Instructions
Key Features
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- Signaling rates up to 3.4 Gbits for fl awless 4K output
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote and RS-232 control
Specifications
Features
Product type*
AV matrix switcher
Data transfer rate
10.2 Gbit/s
Maximum pixel clock
340 MHz
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
1.4
3D
Yes
Extended display identification data (EDID)
Yes
Design
Housing colour
Black
Housing material
Metal
Rack mounting
Yes
Remote control included
Yes
Display
Built-in display*
No
Ports & interfaces
HDMI input ports quantity
4
HDMI output ports quantity
4
USB connector type
Micro-USB
USB ports quantity
1
RS-232 ports
1
Remote (IR) input
1
DC-in jack
Yes
Power
Power consumption (max)*
9.62 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Logistics data
Products per master (outer) case
3 pc(s)
Master (outer) case gross weight
9.54 kg
Master (outer) case length
565 mm
Master (outer) case width
375 mm
Master (outer) case height
258 mm
Master (outer) case net weight
7.53 kg
Harmonized System (HS) code
85299097
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
162.9 mm
Depth
437.2 mm
Height
44 mm
Weight
2.51 kg
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.9 kg
Packaging content
Rack mount kit
Yes
Manual
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Additional Information
| EAN/UPC | 4719264643873 |
|---|---|
| MPN | VM0404HA |
