ATEN 4-Port 4K DisplayPort 1.2a Splitter
£277.67
ATEN 4-Port 4K DisplayPort 1.2a Splitter, DisplayPort, 4x DisplayPort, 4096 x 2160 pixels, Black, Metal, 4K Ultra HD
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

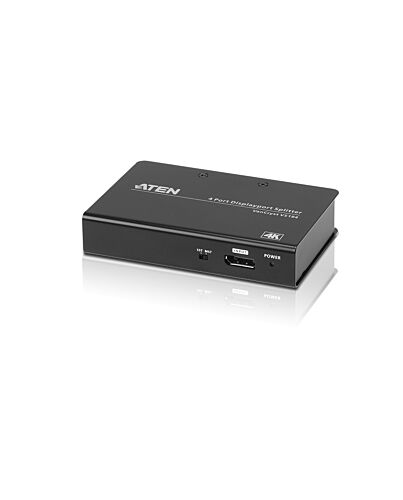

The VS194 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS194 can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.
1x VS194 4-port True 4K DisplayPort Splitter
1x 0AD6-1005-26EG Power Adapter
1x User Instructions
1x VS194 4-port True 4K DisplayPort Splitter
1x 0AD6-1005-26EG Power Adapter
1x User Instructions
Key Features
- Connects one DisplayPort source to four DisplayPort monitors
- Supports DisplayPort 1.2a; HDCP 1.3
- Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
- Supports MST/ Extend Mode and SST/ Split Mode*MST/ Extend Mode:Extend a video source across 2 displays with a maximum resolution of 4K.SST/ Split Mode: Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
Specifications
Ports & interfaces
Video port type*
DisplayPort
Video out*
4x DisplayPort
Video ports quantity*
4
DC-in jack
Yes
Features
Product colour
Black
Housing material
Metal
Maximum resolution*
4096 x 2160 pixels
HD type
4K Ultra HD
HDCP version
1.3
HDCP
Yes
LED indicators
Yes
Power
Power consumption (typical)
3.36 W
Weight & dimensions
Width
80 mm
Depth
125 mm
Height
25 mm
Weight
420 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
600 g
Packaging content
Manual
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
0 - 80%
Logistics data
Master (outer) case net weight
8.4 kg
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
13.2 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4719264645259 |
|---|---|
| MPN | VS194 |
