Data Input Devices

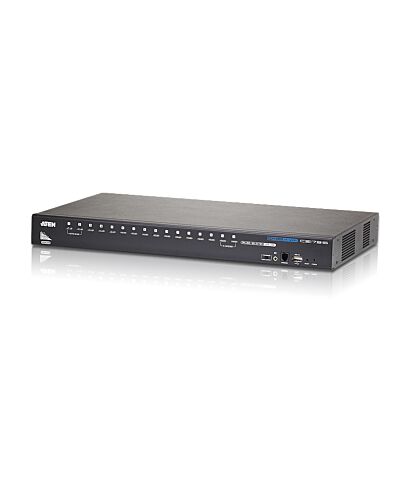

ATEN 16-Port USB - HDMI KVM Switch with USB Peripheral port
£919.82
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers f a single USB keyboard, USB mouse, and monitor console.
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
1x CS17916 16-Port USB HDMI KVM Switch with Rack Mounting Kit
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J11G Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
1x User Instructions
Key Features
- Cascadable to two levels–control up to 256 computers
- Multi-Display feature – stack up to eight CS17916 units and display video f up to eight monitors(dual display/triple display/quad display/multi-display)
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Broadcast e - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc
Specifications
Ports & interfaces
Number of computers controlled*
16
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
HDMI
HDMI ports quantity
16
USB 2.0 Type-B ports quantity
16
Console ports*
3.5mm headphone, 3.5mm mic, HDMI, USB A
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
17
Number of microphone inputs
1
DC-in jack
Yes
Performance
HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Video bandwidth
60 Hz
Scan interval
1,5,255 s
Design
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
8.66 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
432.4 mm
Depth
257.2 mm
Height
44 mm
Weight
5.1 kg
Packaging data
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
5.68 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Logistics data
Master (outer) case net weight
15.3 kg
Harmonized System (HS) code
85176200
Master (outer) case width
427 mm
Master (outer) case length
519 mm
Master (outer) case height
348 mm
Master (outer) case gross weight
18.1 kg
Products per master (outer) case
3 pc(s)
Additional Information
| EAN/UPC | 4719264641602 |
|---|---|
| MPN | CS17916 |
| BRAND | ATEN |
