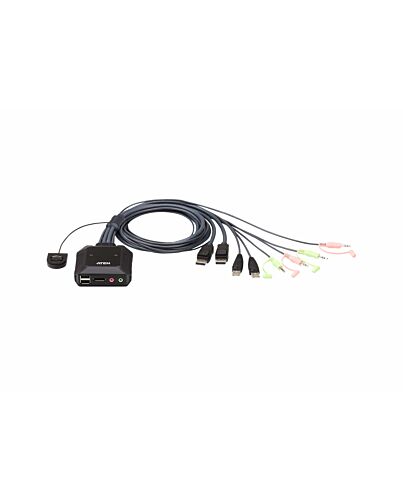

ATEN 2-Port USB DisPlayPort Cable KVM Switch
£73.54
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions
Key Features
- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 30Hz
- Multiplatform support – Windows, Mac, and Linux
- Bus-powered design
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
1
DisplayPort version
1.1
Console ports*
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
2
USB 2.0 ports quantity
2
USB connector type
Micro-USB B, USB Type-A
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
Network
Ethernet LAN
No
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
30 Hz
HDCP
Yes
Hot-Plug support
Yes
Design
Rack mounting*
No
Product colour*
Black
Housing material
Plastic
Wired remote switch
Yes
Cable length
1.2 m
Remote switch cable length
1.8 m
LED indicators
Yes
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power
Power consumption (typical)
1.38 W
USB powered
Yes
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Sustainability
Sustainability certificates
RoHS
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
84.2 mm
Depth
83.4 mm
Height
30.4 mm
Weight
360 g
Packaging data
Package width
55 mm
Package depth
155 mm
Package height
225 mm
Package weight
435 g
Packaging content
Manual
Yes
Logistics data
Master (outer) case net weight
7.2 kg
Harmonized System (HS) code
85176200
Master (outer) case width
328 mm
Master (outer) case length
389 mm
Master (outer) case height
330 mm
Master (outer) case gross weight
9.33 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4719264645525 |
|---|---|
| MPN | CS22DP |
