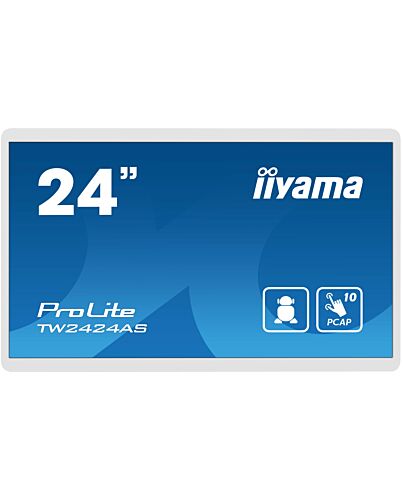

iiyama TW2424AS-W1 Signage Display Digital signage flat panel 60.5 cm (23.8") Wi-Fi 250 cd/m² 4K Ult
£432.52
iiyama TW2424AS-W1, Digital signage flat panel, 60.5 cm (23.8"), 1920 x 1080 pixels, Wi-Fi, 24/7
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TW2424AS-W1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.Touch technology - Capacitive
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.24/7
24/7 displays are designed for a continuous operation.Speakers and headphones
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.Specifications
Display
Panel type
IPS
LED backlighting type
Direct-LED
Display diagonal*
60.5 cm (23.8")
Display resolution*
1920 x 1080 pixels
Display brightness*
250 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
14 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.275 x 0.275 mm
Active display area (W x H)
527 x 296.5 mm
Display diagonal (metric)
60.5 cm
Panel life
50000 h
Horizontal scan range
31 - 83 kHz
Surface hardness
3H
Ports & interfaces
HDMI ports quantity*
1
HDMI input ports quantity
1
VGA (D-Sub) input ports
1
USB port*
Yes
USB ports quantity
3
USB 2.0 Type-B ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
10 W
Design
Product design*
Digital signage flat panel
Placement supported*
Indoor
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Bezel colour
White
Anti-glare screen
Yes
Performance
Purpose*
Commercial
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
19 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Computer system
Computer system*
Yes
Built-in processor*
Yes
Processor manufacturer
Rockchip
Processor family
ARM Rockchip
Processor el
RK3399
Processor frequency
1.8 GHz
Computer system
Processor cores
2
Internal memory
4 GB
On-board graphics card el
ARM Mali-T860 MP4
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
12
Google applications
Google Che, Gmail, Google Calendar
Weight & dimensions
Display width
549.5 mm
Display depth
28 mm
Display height
336 mm
Display weight
4.23 kg
Width
549.5 mm
Depth
28 mm
Height
336 mm
Weight
4.23 kg
Width (with stand)
549.5 mm
Depth (with stand)
28 mm
Height (with stand)
336 mm
Weight (with stand)
4.23 kg
Packaging data
Package width
580 mm
Package depth
126 mm
Package height
375 mm
Package weight
6.15 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Stylus pen
Yes
Number of stylus pens
4
Cables included
AC
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Network
Ethernet LAN*
Yes
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Features
Base colour
Black
Base material
Metal
Suitable for indoor use
Yes
Technical details
Audio in (mini jack)
Yes
OPS slot
1
User controls
Volume +, volume -, power switch
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide
Yes
AC adapter included
Yes
Audio input
✓
Bluetooth
Yes
Bluetooth version
5.2
Built-in microphone
Yes
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Brightness
250 cd/m²
Power supply type
External
Bluetooth Low Energy (BLE)
Yes
Plug and Play
Yes
Additional Information
| EAN/UPC | 4948570122950 |
|---|---|
| MPN | TW2424AS-W1 |
| BRAND | Iiyama |
