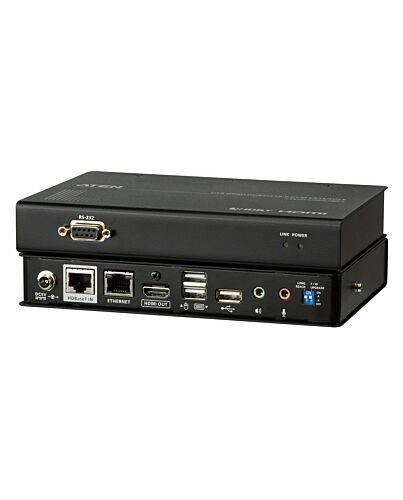

ATEN CE820-ATA-G KVM extender Transmitter & receiver
£736.87
ATEN CE820-ATA-G, Transmitter & receiver, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x 0AD6-1F05-26EG Power Adapters
2x Mounting Kits
1x User Instructions
Key Features
- Supports HDBaseT™ 2.0 technology
- EDID Buffer for smooth power-up and the highest quality display
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality
- Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
- Supports individual 2-channel stereo audio and USB 2.0 full speed ports
- Supports PC wakeup function via single pushbutton through RS-232 channel*
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
150 m
Cable types supported
Cat5e, Cat6, Cat6a
Rack mounting
Yes
Maximum digital resolution
4096 x 2160 pixels
Product colour
Black
Material
Metal
LED indicators
Link, Power, Video
Transmitter
Transmitter video port type
HDMI
Transmitter local video port
Yes
Transmitter local video port type
HDMI
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
Receiver
Receiver local video port type
HDMI
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1
Ports & interfaces
USB 2.0 ports quantity
4
Ports & interfaces
PC Audio in
Yes
PC Audio out
Yes
Power
AC adapter output voltage
5 V
Power consumption (transmitter) (max)
2.87 W
Power consumption (receiver) (max)
5.37 W
Weight & dimensions
Transmitter width
18.2 cm
Transmitter depth
12.2 cm
Transmitter height
2.87 cm
Transmitter weight
630 g
Receiver width
18.2 cm
Receiver depth
12.2 cm
Receiver height
2.87 cm
Receiver weight
650 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Additional Information
| EAN/UPC | 4710469341823 |
|---|---|
| MPN | CE820 |
| BRAND | ATEN |
