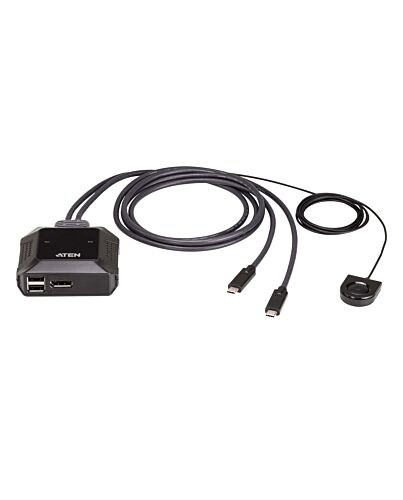

ATEN 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector
£57.28
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ATEN US3312 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector is developed for easy control and fast switch between two USB-C device sources from a single set of keyboard, mouse, and monitor. With cables coming already mounted on to it, the USB bus-powered US3312 supports two USB and one DisplayPort downstream ports, along with USB peripheral sharing capability. Containing a hook and an external remote port selector, the switch box can be placed anywhere to keep the workstation tidy while allowing users to instantly swap peripherals between the connected PCs and ensuring uninterrupted data transmission from a single user station. It supports resolutions up to True 4K (4096 x 2160 @ 60 Hz) to ensure that every detail of the video is displayed in the crisp and sharp UHD quality. The US3312 is a plug-and-play device that not only enhances the efficiency of multi-tasking, but also saves desktop space.
Key Features
- One KVM switch allows for easy control and fast switch between two USB-C devices from a single set of keyboard, mouse, and monitor
- Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4)
- Instant computer selection via remote port selector
- LED indicators will light to display port focus
- Supports two USB and one DisplayPort downstream ports for USB peripheral sharing
- DisplayPort 1.2 compliant
- Bus-powered – no external power adapter or driver needed
- Supports USB hot-plugging
- Compact enclosure with hook design for space-saving and organized workstation
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPort version
1.2
Console ports*
DisplayPort, USB A
Console USB ports quantity
2
Console DisplayPorts ports quantity
1
USB connector type
USB Type-C
Performance
HD type*
4K DCI
Maximum resolution*
4096 x 2160 pixels
Video bandwidth
60 Hz
Design
Rack mounting*
No
Product colour*
Black
Housing material
Plastic
Wired remote switch
Yes
Cable length
1.2 m
Remote switch cable length
1.8 m
LED indicators
Yes
Certification
true-4k
Display
Built-in display*
No
Power
Power source
DC
Input voltage
5 V
Power consumption (typical)
0.74 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
84.2 mm
Depth
83.4 mm
Height
29.9 mm
Weight
190 g
Packaging data
Package weight
270 g
Packaging content
Packaging content
1x 2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector
1x user instructions
Other features
Compatibility
VC925,VC965,VC985,VC986,UCE260,UCE60,UE250,UE150,2L-7D02DP,2L-7D03DP,VS194,VE901,VB905,VC986B,2L-7D03DP-1,2L-7D04DP,US3310,US3342,CS52DP
Logistics data
Country of origin
China
Additional Information
| EAN/UPC | 4710469341908 |
|---|---|
| MPN | US3312 |
| BRAND | ATEN |
