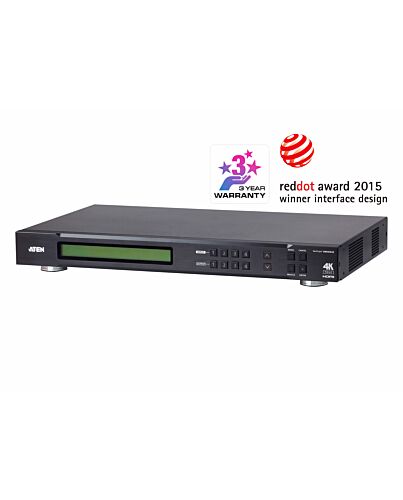

ATEN 4X4 True 4K HDMI Martrix Switch
£795.52
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ATEN's VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mounting Kit
1x User Instructions
Key Features
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
Specifications
Features
Product type*
AV matrix switcher
Data transfer rate
18 Gbit/s
Maximum pixel clock
600 MHz
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
HDCP version
2.2
3D
Yes
EDID management
Yes
Design
Housing colour
Black
Housing material
Metal
Rack capacity
1U
Remote control included
Yes
Display
Built-in display*
Yes
Ports & interfaces
HDMI input ports quantity
4
HDMI output ports quantity
4
RJ-45 input ports
1
RS-232 ports
1
Power
Power consumption (max)*
17.8 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Logistics data
Products per master (outer) case
1 pc(s)
Master (outer) case gross weight
3.76 kg
Master (outer) case length
556 mm
Master (outer) case width
247 mm
Master (outer) case height
153 mm
Master (outer) case net weight
2.75 kg
Harmonized System (HS) code
85299097
Weight & dimensions
Width
152.8 mm
Depth
437.2 mm
Height
44 mm
Weight
2.75 kg
Package width
247 mm
Package depth
556 mm
Package height
153 mm
Package weight
3.76 kg
Packaging content
Cables included
AC
Mounting brackets included
Yes
Additional Information
| EAN/UPC | 4719264646829 |
|---|---|
| MPN | VM0404HB |
| BRAND | ATEN |
