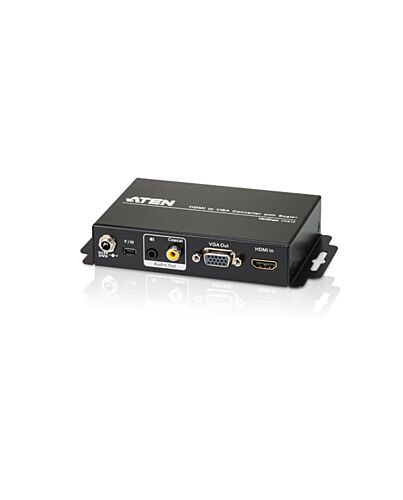

ATEN HDMI to VGA converter with Scaler
£206.48
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.
1 x VC812 HDMI to VGA Converter with Scaler
1 x 0AD6-1F05-26EG Power Adapter
1 x Software CD
1 x User Instructions
1 x VC812 HDMI to VGA Converter with Scaler
1 x 0AD6-1F05-26EG Power Adapter
1 x Software CD
1 x User Instructions
Key Features
- Converts HDMI signals to VGA output
- Supports analog/digital audio
- Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
- Superior video quality – up to 1080p; 1920 x 1200
Specifications
Features
Converter type*
Scaler video converter
On Screen Display (OSD)
Yes
LED indicators
Yes
Product colour
Black
Housing material
Metal
Video
Maximum video resolution*
1920 x 1200 pixels
Video resolutions
800 x 600,1024 x 768,1280 x 1024,1280 x 720,1400 x 1050,1600 x 1200,1680 x 1050,1920 x 1200
Supported video modes
480i, 480p, 576i, 576p, 1080i, 1080p
Ports & interfaces
Host interface*
HDMI
Output interface*
VGA
VGA (D-Sub) output ports
1
3.5 mm connector
Yes
DC-in jack
Yes
Power
USB powered
No
Input voltage
5 V
Technical details
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
83 mm
Depth
110 mm
Height
28 mm
Weight
400 g
Packaging data
AC adapter included
Yes
Manual
Yes
Quick installation guide
Yes
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
625 g
Logistics data
Master (outer) case net weight
2 kg
Harmonized System (HS) code
85176990
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
3.26 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264640568 |
|---|---|
| MPN | VC812 |
| BRAND | ATEN |
