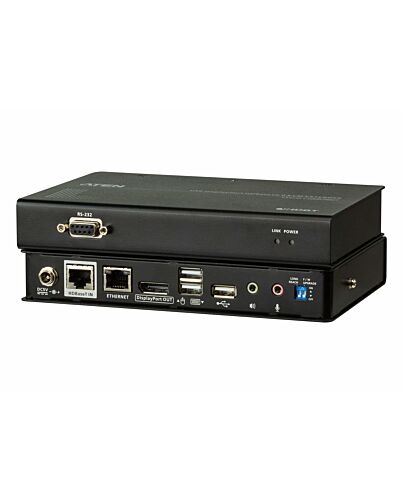

ATEN CE920-ATA-G KVM extender Transmitter & receiver
£863.78
ATEN CE920-ATA-G, Transmitter & receiver, Wired, 150 m, Cat5e, Cat6, Cat6a, 4096 x 2160 pixels, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Note: The CE920-AT supports Ethernet function and the CE920-ATA does not.
Note: The CE920-AT supports Ethernet function and the CE920-ATA does not.
Key Features
- Supports HDBaseT™ 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT™ signal transmission on remote unit
- EDID Buffer for smooth power-up and the highest quality display
- Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
- HDBaseT™ Long-Reach mode up to 1080P @ 150m
- Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
- USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
- HDCP Compatible
- Supports individual 2-channel stereo audio for high-quality audio applications
- Supports PC wakeup function via single pushbutton through RS-232 channel2
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Specifications
Features
Type*
Transmitter & receiver
Connectivity technology*
Wired
Maximum transfer distance
150 m
Cable types supported
Cat5e, Cat6, Cat6a
Rack mounting
Yes
Maximum digital resolution
4096 x 2160 pixels
Product colour
Black
Material
Metal
LED indicators
Yes
Transmitter
Transmitter video port type
DisplayPort
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
1
Receiver
Receiver local video port type
DisplayPort
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1
Ports & interfaces
USB 2.0 ports quantity
4
USB data transfer rates
480 Mbit/s
PC Audio in
Yes
PC Audio out
Yes
Power
AC adapter output voltage
5 V
Power consumption (transmitter) (max)
3.99 W
Power
Power consumption (receiver) (max)
6.74 W
Weight & dimensions
Transmitter width
18.2 cm
Transmitter depth
12.2 cm
Transmitter height
2.87 cm
Transmitter weight
630 g
Receiver width
18.2 cm
Receiver depth
12.2 cm
Receiver height
2.87 cm
Receiver weight
650 g
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2.18 kg
Packaging content
AC adapter included
Yes
Cables included
DisplayPort
Manual
Yes
Mounting bracket(s) included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Additional Information
| EAN/UPC | 4710469341830 |
|---|---|
| MPN | CE920 |
| BRAND | ATEN |
