Components

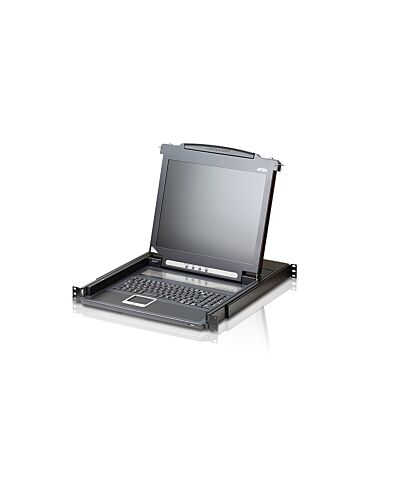

ATEN 19" LCD Console (USB - PS/2 VGA)
£944.88
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions
Key Features
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- Supports input video resolutions up to 1920 x 1200@60 Hz
Specifications
Display
Display diagonal
48.3 cm (19")
Display
LCD
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1280 x 1024 pixels
Rack mounting
Yes
Number of computers controlled
1
LED indicators
Yes
Push button
Yes
Rack capacity
1U
Ports & interfaces
VGA (D-Sub) ports quantity
1
Keyboard port type
PS/2
Mouse port type
PS/2
Video port type
VGA
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Power
Power consumption (typical)
24 W
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
483 mm
Height
44 mm
Depth
585.2 mm
Weight
11.6 kg
Packaging data
Package weight
14.2 kg
Package width
668 mm
Package depth
718 mm
Package height
135 mm
Packaging content
Cables included
KVM
Manual
Yes
AC adapter included
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
11.6 kg
Master (outer) case width
668 mm
Master (outer) case length
718 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
14.2 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264642463 |
|---|---|
| MPN | CL1000N |
| BRAND | ATEN |
