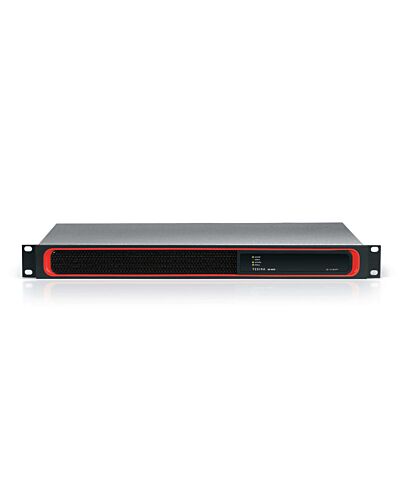

Biamp Tesira EX-
£2,695.44
Biamp Tesira EX-, RJ-45, -125 dBu, 0 - 66 dB, 200 Ω, 100 dB/s, Black
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Tesira EX-
The Tesira EX- is a ular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control.
The Tesira EX- complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Tesira EX- is a ular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control.
The Tesira EX- complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Can be configured with up to three I/O cards
- Up to 12 channels of analog audio
- AVB/TSN connection to Tesira system for audio networking, configuration and control
- Plug-in barrier strip connections on cards
- Front panel LEDs for device status indications
- Internal universal power supply
- Rack mountable (1RU)
- CE marked, UL listed, and RoHS compliant
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Features
Audio channels*
12
Network connection type
RJ-45
Equivalent Input Noise (EIN)
-125 dBu
Input gain range
0 - 66 dB
Output impedance (balanced)
200 Ω
Convergence
100 dB/s
Product colour
Black
Ports & interfaces
USB port*
No
Power
Power over Ethernet (PoE)*
No
Power consumption (typical)
40 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
48 V
Weight & dimensions
Width
483 mm
Weight & dimensions
Depth
267 mm
Height
44 mm
Weight
3.2 kg
Packaging data
Package width
406.4 mm
Package depth
533.4 mm
Package height
177.8 mm
Package weight
4.99 kg
Sustainability
Sustainability compliance
No
Logistics data
Country of origin
United States
Export Control Classification Number (ECCN)
EAR99
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 814367021505 |
|---|---|
| MPN | 913.0311.900 |
| BRAND | BIAMP |
