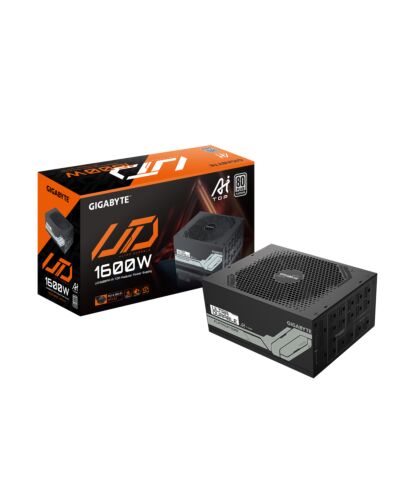

GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully ular Design, 120mm Fan
£292.90
GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully ular Design, 120mm Fan, ATX 3.1 compatible, UK Plug, 1600 W, 100 - 240 V, 50/60 Hz, 15 - 7.5 A, Active, 150 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
- ATX 3.1 and PCIe Gen 5.0 ready
- Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Platinum
- Fully ular design
- Powerful single +12V rail
Specifications
Power
Total power*
1600 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 7.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
150 W
Combined power (+12V)
1600 W
Combined power (+5V)
150 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
17.5 W
Max output current (+3.3V)
30 A
Max output current (+12V)
133.3 A
Max output current (+5V)
30 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
3.5 A
Hold time
16 ms
Efficiency
92%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
16
SATA power cable length
150,650 mm
Peripheral (Molex) power connectors (4-pin)*
6
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
8
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Ports & interfaces
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Platinum
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
DBB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
190 mm
Height
86 mm
Weight
5.3 kg
Packaging data
Package width
410 mm
Package depth
219 mm
Package height
145 mm
Package weight
5.58 kg
Package type
Box
Logistics data
Warranty period
10 year(s)
Additional Information
| EAN/UPC | 4719331555054 |
|---|---|
| MPN | GP-UD1600PM PG5 AI TOP |
| BRAND | Gigabyte |
