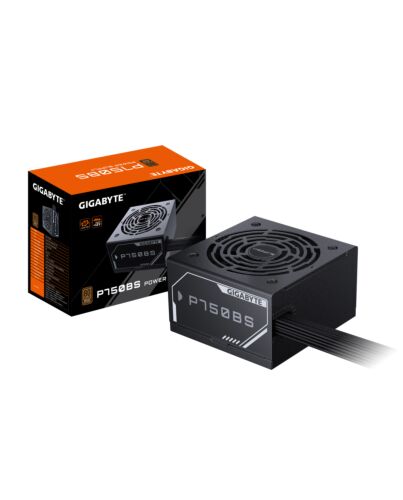

GIGABYTE P750BS Power Supply - PCIe 5.0, 80 PLUS Bronze, 120mm Fan, ATX compatible, UK Plug
£46.64
GIGABYTE P750BS Power Supply - PCIe 5.0, 80 PLUS Bronze, 120mm Fan, ATX compatible, UK Plug, 750 W, 200 - 240 V, 50/60 Hz, 6 A, Active, 100 W
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- 80 PLUS Bronze (230V EU)
- 120mm Silent Fluid Dynamic Bearing (FDB) fan
- Soft-textured embossed cables
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specifications
Power
Total power*
750 W
AC input voltage*
200 - 240 V
AC input frequency
50/60 Hz
Input current
6 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
100 W
Combined power (+12V)
750 W
Combined power (+5V)
100 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16 ms
Efficiency
88%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
7
SATA power cable length
150,500 mm
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
150,600 mm
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Floppy drive power connector
2
Ports & interfaces
Floppy disk drive connector
Yes
PCI Express connector
Yes
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
2.22 kg
Packaging data
Package width
254 mm
Package depth
206 mm
Package height
117 mm
Package weight
2.68 kg
Package type
Box
Logistics data
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331555252 |
|---|---|
| MPN | GP-P750BS-UK |
| BRAND | Gigabyte |
