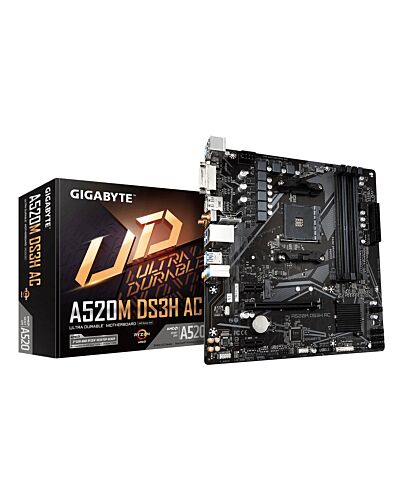

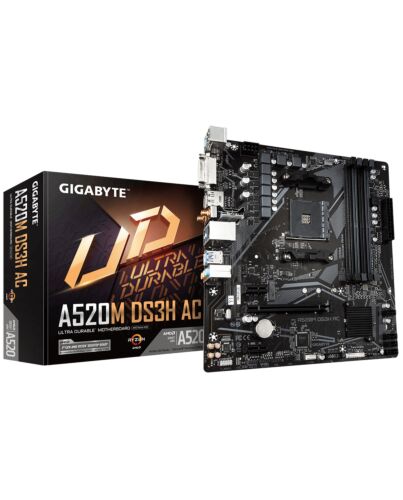

GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5
£65.09
GIGABYTE A520M DS3H AC Motherboard - AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket AM4, DDR4-SDRAM, 128 GB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, Display Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz
Supported memory clock speed (max)
4733 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
32 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
Discrete graphics support
Yes
Number of displays supported
3
Internal I/O
USB 2.0 connectors*
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
Total number of SATA connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Serial port headers
1
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
2
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
HDMI ports quantity*
1
HDMI version
2.1
DVI-D ports quantity*
1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Rear panel I/O ports
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller el
Intel Dual Band Wireless-AC 3168
Bluetooth
Yes
Bluetooth version
4.2
Features
Motherboard chipset*
AMD A520
Audio output channels*
7.1 channels
PC health monitoring
Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
AMD
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
3.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
270 mm
Package depth
268 mm
Package height
68 mm
Package weight
1.21 kg
Weight & dimensions
Width
244 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Other features
Weight
720 g
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331810696 |
|---|---|
| MPN | A520M DS3H AC |
| BRAND | Gigabyte |
