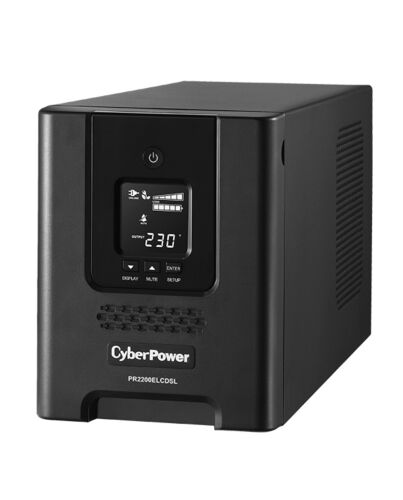

CyberPower PR2200ELCDSL uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1980 W 9 AC outl
£621.35
CyberPower PR2200ELCDSL, Line-Interactive, 2.2 kVA, 1980 W, Sine, 160 V, 283 V
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipment, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizing the AC signal and maintaining a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition and to help users control and manage the machine easily.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
Features
UPS topology*
Line-Interactive
Output power capacity*
2.2 kVA
Output power*
1980 W
Waveform*
Sine
Input operation voltage (min)*
160 V
Input operation voltage (max)*
283 V
Input frequency*
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Response time
4 ms
Number of input phases
1
Number of output phases
1
Emergency Power Off (EPO)
Yes
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload
Audible alarm(s)
Yes
Web-based management
Yes
Management protocols
SNMP, HTTP
Auto-restart
Yes
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
9 AC outlet(s)
USB 2.0 ports quantity
1
Serial ports quantity
1
Emergency Power Off (EPO) connector
Yes
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery voltage
12 V
Number of batteries supported
4
Typical backup time at full load
3 min
Typical backup time at half load
12 min
Battery recharge time
8 h
Automatic battery test
Yes
Design
Form factor*
Tower
Product colour*
Black
Display type
LCD
LED indicators
Yes
Weight & dimensions
Width
170 mm
Depth
432 mm
Height
221 mm
Weight
23.3 kg
Packaging data
Bundled software
PowerPanel Business Edition
Other features
Output connections
8 x IEC 320 C13, 1 x IEC 320 C19
Nominal output voltage
230 V
Nominal input voltage
230 V
Suitable for use in country/location
Europe
Additional Information
| EAN/UPC | 4712364146350 |
|---|---|
| MPN | PR2200ELCDSL |
| BRAND | CYBERPOWER |
