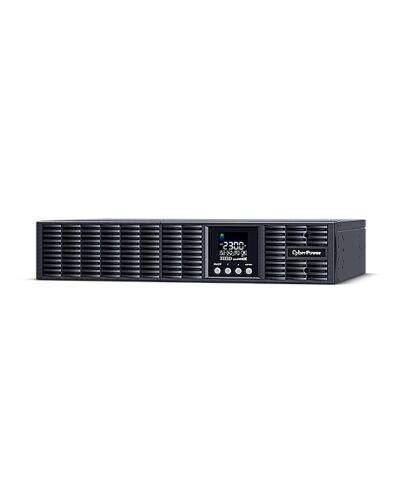

CyberPower OLS1500ERT2UA uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350
£569.21
CyberPower OLS1500ERT2UA, Double-conversion (Online), 1.5 kVA, 1350 W, Pure sine, 190 V, 300 V
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CyberPower OLS1500ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This el is designed with extended battery ule auto-detection, which can automatically detect the quantity of connected Extended Battery ules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This el is designed with extended battery ule auto-detection, which can automatically detect the quantity of connected Extended Battery ules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
Key Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery ule Auto-detection
- Critical/Non-critical Load Outlets
- Phone/Fax/em/DSL/Network Protection
- Variable Speed Fans
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- ECO e
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- Color LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
Specifications
Features
UPS topology*
Double-conversion (Online)
Output power capacity*
1.5 kVA
Output power*
1350 W
Waveform*
Pure sine
Input operation voltage (min)*
190 V
Input operation voltage (max)*
300 V
Input frequency*
50/60 Hz
Output operation voltage (min)
208 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Maximum current
9 A
Surge energy rating
363 J
Response time
0 ms
Efficiency (ECO e)
95%
Input power factor
0.99
Output power factor
0.9
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
5%
EMI/RFI noise filtering
Yes
Noise level
45 dB
Surge protection
Yes
Power protection features
Input fuse, Overload, Short circuit
Audible alarm(s)
Yes
Audible alarm es
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Ports & interfaces

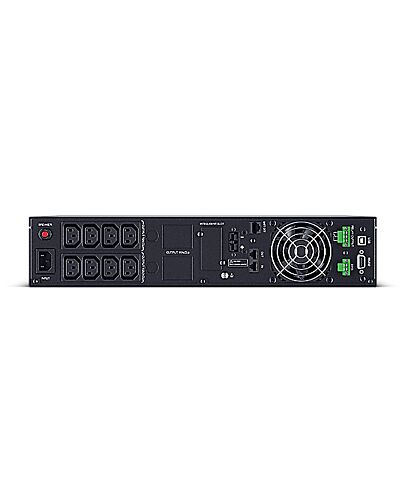

AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Ethernet LAN (RJ-45) ports
2
Emergency Power Off (EPO) connector
Yes
Battery
Battery voltage
48 V
Number of batteries supported
4
Typical backup time at full load
5.3 min
Typical backup time at half load
15.3 min
Battery
Battery recharge time
4 h
Charging current
1.5 A
Replacement battery cartridge
BPSE48V40ART2U
Design
Form factor*
Rackmount/Tower
Housing material
Metal
Rack capacity
2U
Cable length
1.5 m
Built-in fan
Yes
Product colour*
Black
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 1500 m
Non-operating altitude
0 - 1500 m
Certificates
Compliance certificates
CE, RoHS
Packaging content
Cables included
USB cable
Weight & dimensions
Width
438 mm
Depth
430 mm
Height
88 mm
Weight
13.8 kg
Packaging data
Package width
540 mm
Package depth
550 mm
Package height
230 mm
Package weight
20.5 kg
Logistics data
Harmonized System (HS) code
8504408590
Country of origin
China
Additional Information
| EAN/UPC | 4711027790282 |
|---|---|
| MPN | OLS1500ERT2UA |
| BRAND | CYBERPOWER |
