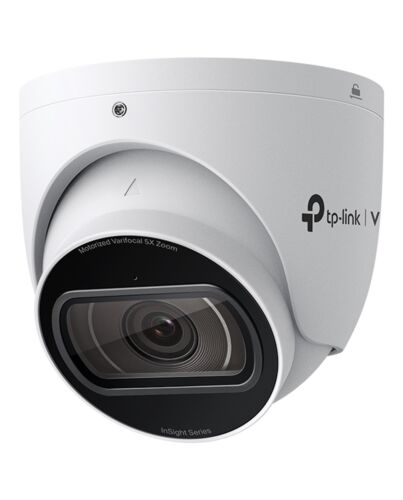

TP-Link VIGI InSight S445ZI Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling
£296.83
TP-Link VIGI InSight S445ZI, IP security camera, Outdoor, Wired, 120 dB, Ceiling, White
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles f other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infed lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles f other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infed lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Key Features
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Specifications
Performance
Type*
IP security camera
Placement supported*
Outdoor
Connectivity technology*
Wired
Wide Dynamic Range (WDR)
Yes
Day/night e
Yes
Infed (IR) cut-off filter
Yes
Remote viewing
Yes
Dynamic range
120 dB
Design
Form factor*
Turret
Mounting type*
Ceiling
Product colour*
White
Housing material
Metal
Protection features
Waterproof
International Protection (IP) code
IP67
Weatherproof
Yes
Camera
Minimum illumination
0 lx
Angle of rotation
360°
Lens viewing angle, horizontal
29.6–102
Lens viewing angle, vertical
16.8–53.8
Lens viewing angle, diagonal
34.1–122.8
Tilt angle range
0 - 77°
Pan range
0 - 360°
Camera shutter speed
1/3 to 1/10000
Number of Privacy masking areas
4
Image sensor
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Progressive scan
Yes
Sensor type*
CMOS
Lens system
Zoom capability
Yes
Optical zoom
5x
Number of lenses*
1
Focal length range
2.7 - 13.5 mm
Auto focus
Yes
Focus
Motorized
Maximum aperture number
1.6
Detect distance (wide)
66 m
Detect distance (tele)
207 m
Observe distance (wide)
28 m
Observe distance (tele)
86 m
Recognize distance (wide)
13 m
Recognize distance (tele)
41 m
Identify distance (wide)
7 m
Identify distance (tele)
21 m
Night vision
Night vision*
Yes
Night vision distance
60 m
LED type
IR
Number of illumination LEDs
4
Infra-red wavelength
850 nm
Video
Maximum resolution*
2688 x 1520 pixels
Total megapixels*
4 MP
Video compression formats
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video recording
Yes
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Digital Wide Dynamic Range (DWDR)
Yes
Region of Interest (ROI) encoding
Yes
Video
Smart IR
Yes
Audio
Audio system
2-way
Audio input channels
1.0 channels
Audio output channels
1.0 channels
Audio formats supported
G.711 A-law
Sample rate
8 kHz
Signal-to-Noise Ratio (SNR)
52 dB
Built-in microphone
Yes
Number of microphones
1
Bit rate range
0 - 64 Kbit/s
Network
Ethernet LAN*
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Wi-Fi*
No
Bluetooth*
No
Live view
Yes
Number of simultaneous live view channels
6 channels
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Security
Alarm input channels
1
Alarm output channels
1
Built-in siren
Yes
Password protection
Yes
Video motion detection
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Alert notification type
Push notification
Privacy protection
Yes
Motion sensor
Yes
Mirror
Yes
Human and vehicle targets classification
Yes
Digest ation
Yes
Management features
Web browser
Yes
Cloud-managed*
Yes
Reset button
Yes
Power
Power source type*
DC, PoE
Power consumption (max)
10.8 W
Power consumption (Power over Ethernet (PoE))
12 W
DC output voltage
12
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Height
92.5 mm
Diameter
11.2 cm
Weight
710 g
Packaging data
Package weight
960 g
Package type
Box
Packaging content
Number of cameras*
1
Mounting kit
Yes
Screws included
Yes
Drilling template included
Yes
Manual
Yes
Additional Information
| EAN/UPC | 1210002606318 |
|---|---|
| MPN | INSIGHT S445ZI |
| BRAND | TP-LINK |
