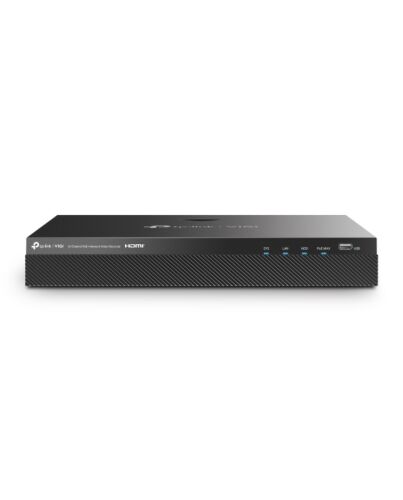

TP-Link VIGI NVR2016H-16MP network video recorder Black
£593.65
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Performance
Video input channels*
16 channels
Number of simultaneously playbacked channels
16 channels
Video recording es
720p, 1080p
Maximum resolution*
3840 x 2160 pixels
Supported resolutions
HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detection
Yes
Audio formats supported
G.711 A-law, G.711 μ-law, G.726
Video formats supported
H.264, H.264+, H.265, H.265+
Playback es
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controls
Yes
Maximum frame rate
30 fps
Input bandwidth
80 Mbit/s
Output bandwidth
60 Mbit/s
Recording es
Manual, Schedule
Wireless LAN features
Wi-Fi*
No
Hard drive
HDD capacity*
0 GB
Number of HDDs supported
2
Maximum storage capacity*
10 TB
HDD interface*
SATA
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power over Ethernet (PoE)
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity
16
HDMI ports quantity
1
VGA (D-Sub) output ports
1
USB 2.0 ports quantity
2
eSATA ports quantity
1
Internal SATA ports quantity
2
Ports & interfaces
eSATA
Yes
Line-in
Yes
Audio output
1
DC-in jack
Yes
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
UPnP (Plug and Play), NTP (Network Timing)
Features
Reset button
Yes
Product colour
Black
Certification
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Power
Power consumption (max)
40 W
Output current
2.43 A
Output voltage
53.5 V
Total Power over Ethernet (PoE) budget
140 W
Operational conditions
Operating temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Weight & dimensions
Width
330 mm
Depth
285 mm
Height
45 mm
Weight
2.1 kg
Package weight
4.1 kg
Packaging content
Cables included
AC
AC adapter included
Yes
Quick installation guide
Yes
Additional Information
| EAN/UPC | 1210002606417 |
|---|---|
| MPN | VIGI NVR2016H-16MP |
| BRAND | TP-LINK |
