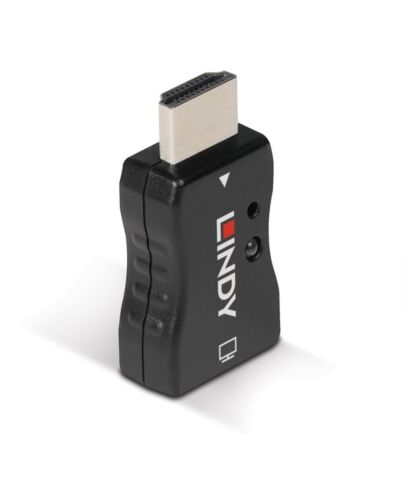

Lindy HDMI 2.1 EDID
£44.70
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy HDMI 2.1 EDID Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters & Switches. With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new HDMI equipment works seamlessly with no compise on performance.
The also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@60Hz or 3840x2160@120Hz HDR (Via cloning), HDCP 2.3 pass-through, this is perfect for use with Ultra HD 4K monitors.
This adapter can be used to quickly and easily the EDID data f the HDMI display so that the graphics card has direct access to the correct data f the display, the cloning process takes less than 10 seconds; Alternatively the EDID is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.
The also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@60Hz or 3840x2160@120Hz HDR (Via cloning), HDCP 2.3 pass-through, this is perfect for use with Ultra HD 4K monitors.
This adapter can be used to quickly and easily the EDID data f the HDMI display so that the graphics card has direct access to the correct data f the display, the cloning process takes less than 10 seconds; Alternatively the EDID is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.
Specifications
Features
Maximum video resolution*
4096 x 2160 pixels
Video resolutions
640 x 480,720 x 400,720 x 480,720 x 576,800 x 600,832 x 624,1024 x 768,1280 x 1024,1280 x 720,1280 x 800,1440 x 900,1600 x 900,1680 x 1050,1920 x 1080,2560 x 1440,3840 x 2160,4096 x 2160
Audio output channels
2.1 channels
Audio formats supported
LPCM
Design
Product colour
Black
Housing material
ABS
Certification
CE, FCC, RoHS, REACH
Ports & interfaces
Video port type*
HDMI
Number of video inputs*
1
Number of video outputs*
1
HDCP
Yes
Packaging content
Manual
Yes
Package type
Polybag
Technical details
Warranty period
2 year(s)
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
24.1 mm
Depth
44.2 mm
Height
11.8 mm
Weight
8.8 g
Packaging data
Package width
133 mm
Package depth
144 mm
Package weight
22 g
Additional Information
| EAN/UPC | 4002888321198 |
|---|---|
| MPN | 32119 |
| BRAND | Lindy |
