Product Details
Description
Transmission of uncompressed and unencrypted video signals in UHD resolution

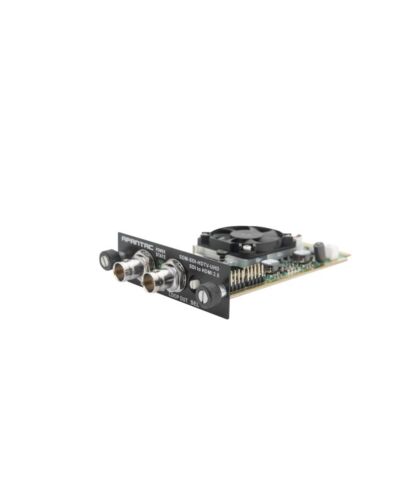

As a clean and modular solution the 12G SDI board can be fully integrated into any Sharp/NEC display that support the Intel® SDM slot.
This board is backwards compatible and can even daisychain video signals in large canvas installations.
Ideally suited for broadcast studios or any application that requires transmission of uncompressed and unencrypted video signals.
As a clean and modular solution the 12G SDI board can be fully integrated into any Sharp/NEC display that support the Intel® SDM slot.
This board is backwards compatible and can even daisychain video signals in large canvas installations.
Ideally suited for broadcast studios or any application that requires transmission of uncompressed and unencrypted video signals.
Key Features
- Upgrade to latest professional video transmission - 12G SDI is the latest technical standard of the Serial Digital Interface (SDI) and is backwards compatible with HD-SDI, 3G and 6G versions
- High reliability - ideally suited for 24/7 operation due to the use of industrial grade components
- Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated incl. power, video and audio signals
- Latency free - transmission of video signals with no delay from the camera to the display
- Enhanced feature set - 100% compatibility in combination with supported Sharp/NEC Large Format Displays
Specifications
Features
Product type*
Plug-in-module
Resolution at capture speed
1920x1080@30fps, 1920x1080@60fps, 3840x2160@60fps
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
290 mm
Depth
210 mm
Weight & dimensions
Height
70 mm
Weight
230 g
Packaging data
Package weight
270 g
Power
Power consumption (max)
9.5 W
Additional Information
| EAN/UPC | 5028695122956 |
|---|---|
| MPN | 100015711 |
