iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
£319.69
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

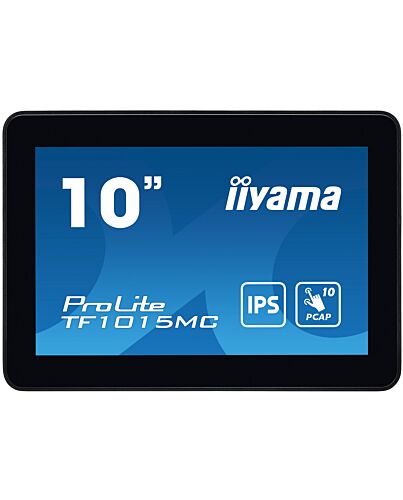

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Reasons To Buy
Touch Through-Glass

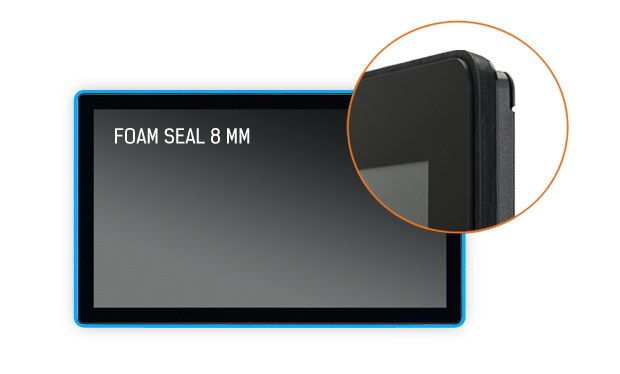

Foam Seal
Touch technology - Capacitive

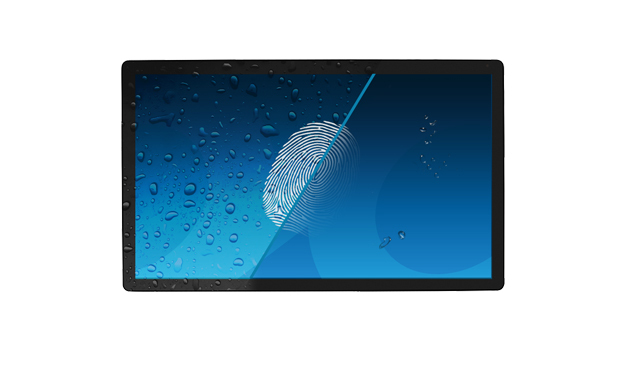

Anti-fingerprint coating

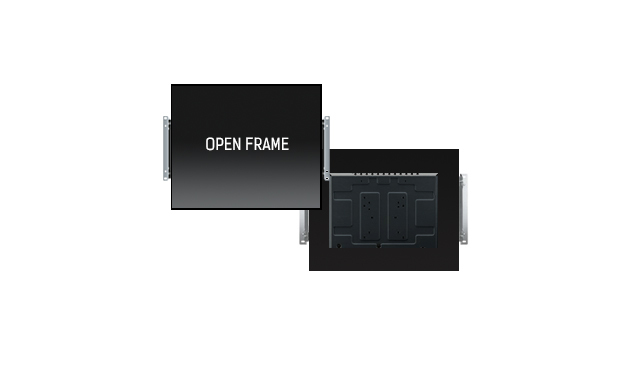

Open frame brackets
Specifications
Display
Panel type
IPS
Display diagonal*
25.6 cm (10.1")
Display technology*
LED
Display resolution*
1280 x 800 pixels
Display brightness*
500 cd/m²
HD type*
HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:10
Response time
29 ms
Contrast ratio (typical)
800:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.1695 x 0.1695 mm
Active display area (W x H)
216.96 x 135.6 mm
Display diagonal (metric)
25.7 cm
Maximum frame rate
75 fps
Horizontal scan range
30 - 49.7 kHz
Surface hardness
7H
Glass thickness
3.3 mm
Ports & interfaces
HDMI ports quantity*
1
DVI port*
No
VGA (D-Sub) input ports
1
DisplayPorts quantity*
1
USB port*
Yes
USB ports quantity
1
Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Design
Product design*
Interactive flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
Performance
Number of OSD languages
7
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
HDCP
Yes
International Protection (IP) code
IP65
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
6 W
Power consumption (standby)*
1.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
6 kWh
Energy efficiency scale
A to G
Weight & dimensions
Display width
260.5 mm
Display depth
39.5 mm
Display height
183.5 mm
Display weight
1.4 kg
Packaging data
Package width
310 mm
Package depth
370 mm
Package height
160 mm
Package weight
2.7 kg
Packaging content
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, cULus
Sustainability
European Product Registry for Energy Labelling (EPREL) code
378636
Features
Wall mountable
Yes
Technical details
Audio out (mini jack)
1
Other features
Quick start guide
Yes
Plug and Play
Yes
Additional Information
| EAN/UPC | 4948570124107 |
|---|---|
| MPN | TF1015MC-B3 |
| BRAND | Iiyama |
