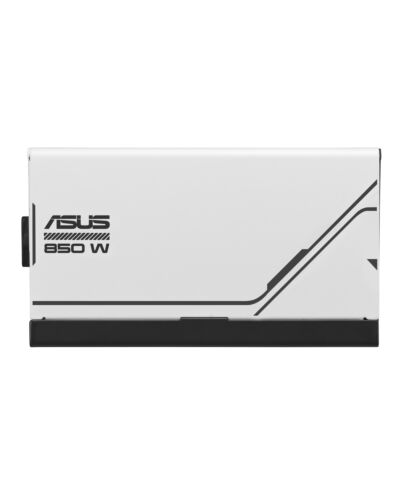

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
£93.85
ASUS AP-850G, 850 W, 100 - 240 V, Active, 110 W, 846 W, 110 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Key Features
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards
Specifications
Power
Total power*
850 W
AC input voltage*
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
846 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
5
SATA power cable length
400,120 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
400,150 mm
PCI Express power connectors (8-pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
67.5 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
65 cm
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.0
Mean time between failures (MTBF)
120000 h
Design
Product colour
Black, White
Cooling type
Active
Number of fans
1 fan(s)
Fan location
Top
Illumination
Yes
Packaging content
Cables included
CPU, PCIe, SATA, Peripheral (Molex)
Certificates
Compliance certificates
RoHS
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.5 kg
Packaging data
Package width
346 mm
Package depth
208 mm
Package height
144 mm
Package weight
2.92 kg
Package type
Box
Additional Information
| EAN/UPC | 4711387192658 |
|---|---|
| MPN | 90YE00U0-B0NA00 |
