Components

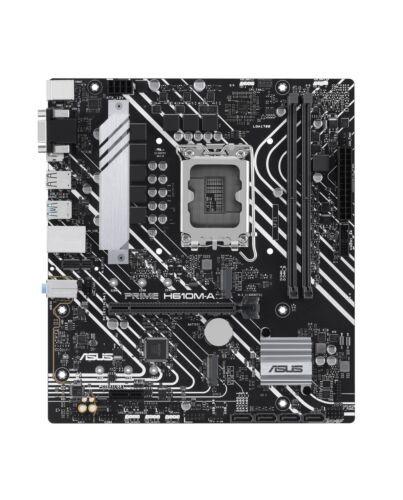

ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX
£85.64
ASUS PRIME H610M-A-CSM, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 96 GB, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600 MHz
Maximum internal memory*
96 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
Ethernet LAN (RJ-45) ports*
1
Rear panel I/O ports
PS/2 ports quantity
2
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
DisplayPorts quantity
1
Headphone outputs
1
Microphone in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Wi-Fi*
No
Features
Motherboard chipset*
Intel H610
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
Packaging data
Package width
270 mm
Package depth
263 mm
Package height
51.5 mm
Package weight
1.07 kg
Weight & dimensions
Width
244 mm
Depth
216 mm
Height
39 mm
Other features
Weight
554 g
Additional Information
| EAN/UPC | 4711387293911 |
|---|---|
| MPN | 90MB1G20-M0EAYC |
| BRAND | ASUS |
