Components

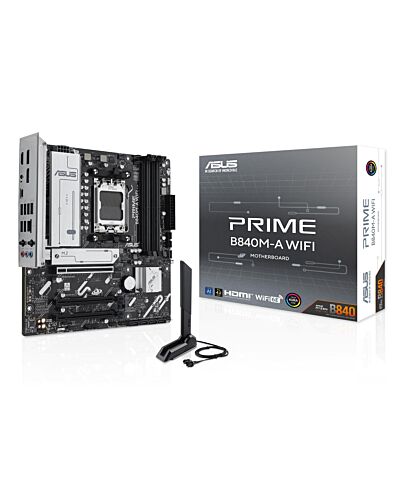

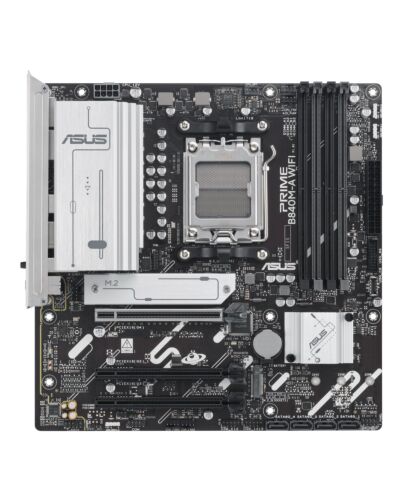

ASUS PRIME B840M-A WIFI AMD B840 Socket AM5 micro ATX
£126.26
ASUS PRIME B840M-A WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 192 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
B840M-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Maximum internal memory*
192 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
DisplayPorts quantity
2
WiFi-AP antenna jack
1
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
AMD B840
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
3.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.52 kg
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Additional Information
| EAN/UPC | 4711387797143 |
|---|---|
| MPN | 90MB1J20-M0EAY0 |
| BRAND | ASUS |
