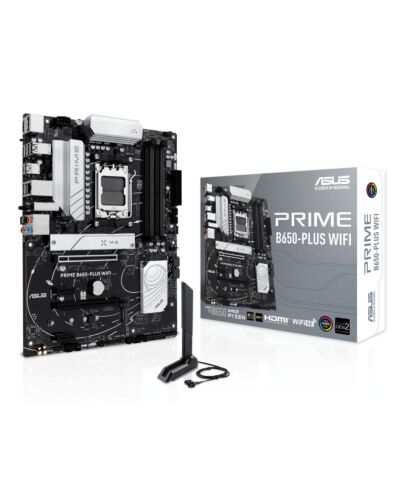

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX
£131.98
ASUS PRIME B650-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 192 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
B650-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. This platform delivers the power and connectivity that advanced AI PC applications demand.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Key Features
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, tek 2.5Gb Ethernet, USB 10Gbps Type-C®, front USB 5Gbps Type-C®, Thunderbolt™ 4 header support
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)
7600 MHz
Maximum internal memory*
192 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
1
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
Rear panel I/O ports
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
DisplayPorts quantity
1
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
AMD B650
Audio output channels*
7.1 channels
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
2
Number of M.2 (M) slots
2
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
338 mm
Package depth
373 mm
Package height
68 mm
Package weight
1.35 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Additional Information
| EAN/UPC | 4711387760895 |
|---|---|
| MPN | 90MB1KP0-M0EAY0 |
| BRAND | ASUS |
