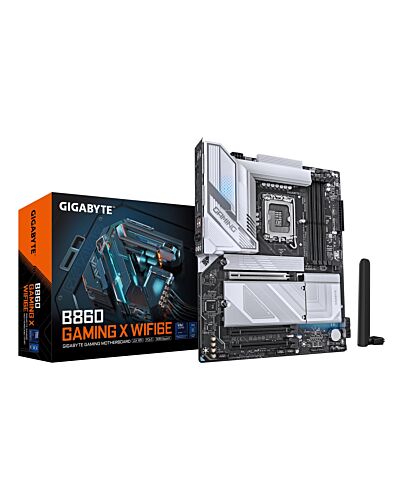

GIGABYTE B860 GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB4
£183.18
GIGABYTE B860 GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB4, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features
- Twin Hybrid 12+1+2+1 Phases 50A PPAK VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
- M.2 Gen5 (Up to 25110) with EZ-Latch Plus
- Advanced MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
- Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
- 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen 2 Type-C
- Q-Flash Plus
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
5600,6400,9066 MHz
Supported memory clock speed (max)
9066 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 2.0 ports quantity*
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
1
USB4 Gen 2x2 ports quantity
1
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Network
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
Intel B860
Audio chip
Realtek ALC897
Audio output channels*
7.1 channels
Product colour
Dark brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
Intel
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
3
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Package weight
2.21 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
1.93 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331866532 |
|---|---|
| MPN | B860 GAMING X WIFI6E |
| BRAND | Gigabyte |
