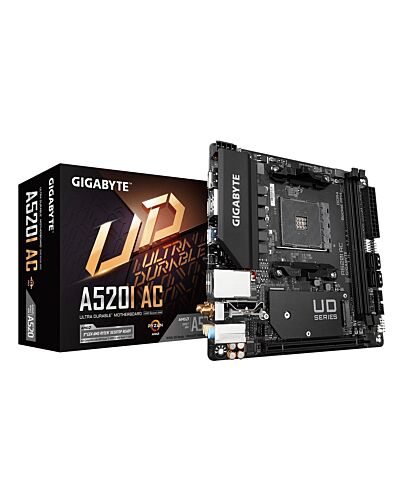

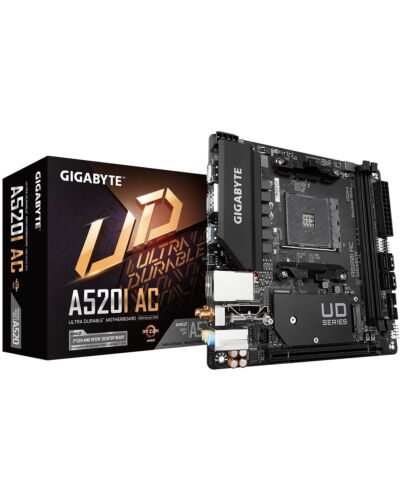

GIGABYTE A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to
£88.80
GIGABYTE A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to 5300MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI, GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, 64 GB, DDR4-SDRAM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 6 Phases Digital VRM Solution with 55A OS
- Ultra-Fast NVMe PCIe 3.0 x4 M.2
- Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
- tek GbE LAN with Bandwidth Management
- DisplayPort, Dual HDMI for for Multiple Display
- RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series
Supported processor sockets
Socket AM4
Maximum internal memory supported by processor
64 GB
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Supported memory clock speed (max)
5300 MHz
Maximum internal memory*
64 GB
Supported memory ule capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
Maximum resolution
5120 x 2880 pixels
HDCP
Yes
DirectX version
12.0
Number of displays supported
3
Internal I/O
USB 2.0 connectors*
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
Number of SATA III connectors*
4
Total number of SATA connectors
4
Audio connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
Power fan connector
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
Serial port headers
1
RGB LED pin header
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
2
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
3
Rear panel I/O ports
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth
Yes
Bluetooth version
4.2
Features
Motherboard chipset*
AMD A520
Audio chip
tek ALC887
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
mini ITX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 slots
1
Number of M.2 (M) slots
1
BIOS
BIOS type*
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
222 mm
Package depth
189 mm
Package height
78 mm
Package weight
800 g
Weight & dimensions
Width
170 mm
Depth
170 mm
Height
35 mm
Packaging content
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version), tek® 8118 Gaming LAN Bandwidth Control Utility
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331809867 |
|---|---|
| MPN | A520I AC |
| BRAND | Gigabyte |
