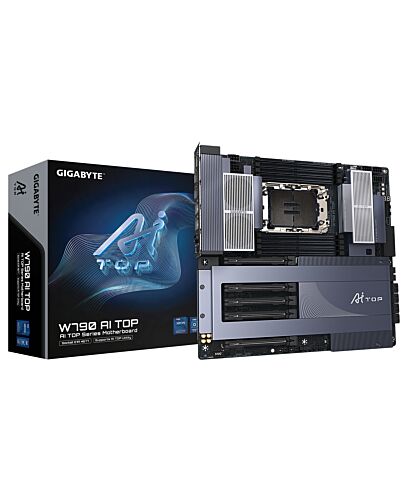

GIGABYTE W790 AI TOP Motherboard - Supports Intel Xeon CPUs, 16+2+2 phases VRM, up to 5600MHz DDR5 (
£795.66
GIGABYTE W790 AI TOP Motherboard - Supports Intel Xeon CPUs, 16+2+2 phases VRM, up to 5600MHz DDR5 (OC), 4xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 7, 10 GbE LAN, Thunderbolt 4, Intel, LGA 4677 (Socket E), Intel® Xeon®, W-2400, W-3400, W3500, W-2500, DDR5-SDRAM, 2 TB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Training your own AI on your desk
- Support 5th Gen Intel Xeon W processors
- Digital twin 16+2+2 phases VRM solution
- Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt 4 Type-C with DP-Alt
- Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- 8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity
- Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
- Friendly UI : AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for -time monitoring on CPU power phases
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 4677 (Socket E)
Compatible processor series*
Intel® Xeon®
Intel Xeon series
W-2400, W-3400, W3500, W-2500
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
8
Memory slots type
DIMM
Memory channels
Octa-channel
ECC сompatibility
ECC
Supported memory clock speeds
4800,5600 MHz
Supported memory clock speed (max)
5600 MHz
Maximum internal memory*
2 TB
Maximum RDIMM memory
256 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
8
Number of storage drives supported
14
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
8
Audio connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
4
TPM connector
Yes
Number of water pump connectors
1
Number of temperature sensor headers
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
Ethernet LAN (RJ-45) ports*
2
DisplayPorts quantity
2
Headphone outputs
1
Line-in
Yes
S/PDIF out port
Yes
Digital audio optical out
1
Thunderbolt ports quantity
2
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Intel X710-AT2
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller el
Intel Wi-Fi 7 BE200
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
Intel W790
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
Server
Motherboard form factor*
Extended ATX
Motherboard chipset family*
Intel
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 5.x) slots
5
Number of M.2 (M) slots
6
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
6th M.2 largest key size
2280
6th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
512 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Processor special features
Trusted Platform ule (TPM)
Yes
Logistics data
Country of origin
Taiwan
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
363 mm
Package depth
383 mm
Package height
93 mm
Package weight
5.7 kg
Weight & dimensions
Width
305 mm
Depth
330 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
4.87 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331866556 |
|---|---|
| MPN | W790 AI TOP |
| BRAND | Gigabyte |
