Components

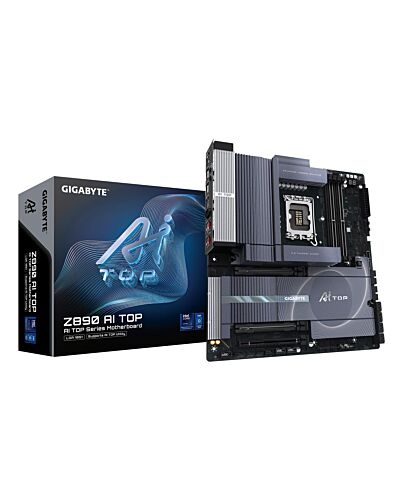

GIGABYTE Z890 AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up
£505.04
GIGABYTE Z890 AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 9500MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0 M.2, Wi-Fi 7, 10 GbE LAN, Thunderbolt 5, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Training your own AI on your desk
- Supports Intel Core Ultra processors (Series 2)
- Twin Digital 16+1+2 phases VRM solution
- Ultimate Scalability: 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
- Next-gen Connectivity: Dual Thunderbolt 5 Type-C with DP-Alt, HDMI
- Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI BOOST: Auto-Overclocking Software by AI els
- Premium Compatibility: 4*DDR5 with XMP Memory ule Support
- Reinforced Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz
Supported memory clock speed (max)
9500 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
8
Number of storage drives supported
12
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
7680 x 4320 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
2
Number of SATA III connectors*
8
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
Number of water pump connectors
3
Number of temperature sensor headers
2
Number of noise detection headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
6
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
2.1
Headphone outputs
1
Line-in
Yes
Thunderbolt ports quantity
2
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Marvell AQtion AQC113C
Network
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller el
Intel Wi-Fi 7 BE200
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
Intel Z890
Audio chip
ESS ES9260
Audio output channels*
2.0 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
Extended ATX
Motherboard chipset family*
Intel
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
4
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
Taiwan
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
400 mm
Package depth
335 mm
Package height
430 mm
Package weight
4.1 kg
Weight & dimensions
Width
305 mm
Depth
285 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
3.53 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331866051 |
|---|---|
| MPN | Z890 AI TOP |
| BRAND | Gigabyte |
