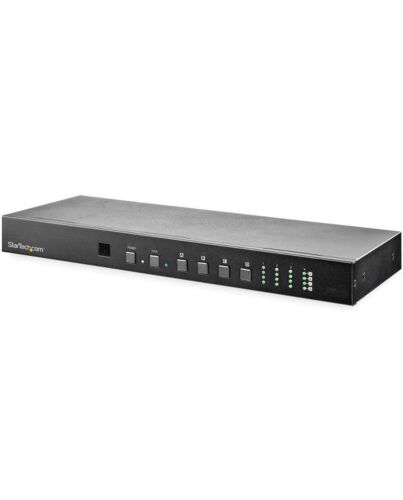

StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz
£543.76
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
HDMI Switcher Box | Rack Mountable | Remote Ethernet & RS232 Control
This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality
This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.
The StarTech.com Advantage
- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality
This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.
The StarTech.com Advantage
- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
Key Features
- FLEXIBLE SWITCHING: Share and switch four HDMI inputs between four HDMI displays with this 4x4 HDMI matrix switch that lets you choose which source is active on each display device
- UHD RESOLUTION: This 4K 60Hz HDMI splitter supports true 4K video and HDR for uncompromising picture quality and is equipped with convenient push-button switching
- WIDE COMPATIBILITY: This HDMI switch box features EDID management support for greater compatibility with your video source and display
- CONVENIENT SETUP: Designed with space in mind this HDMI 2.0 matrix video selector features a rack-mounting option as well as a standalone option and features WebGUI and RS232 control
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Matrix Switch is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Features
Product type*
AV matrix switcher
Maximum resolution
4096 x 2160 pixels
Bandwidth
18 Gbit/s
Audio channels
7.1
Supported resolutions
4096 x 2160
3840 x 2160
1920 x 1200
Design
Housing colour
Black
Housing material
Metal
Rack mounting
Yes
LED indicators
Activity, Power
Remote control included
Yes
Certification
TAA, CE, FCC, REACH
Display
Built-in display*
No
Ports & interfaces
HDMI input ports quantity
4
HDMI output ports quantity
4
HDMI version
2.0
USB connector type
Mini-USB B
USB ports quantity
1
Ethernet LAN (RJ-45) ports
1
RS-232 ports
1
Remote (IR) input
1
Power
AC input voltage
100 - 240 V
Input current
1.5 A
Power
Output current
2700 mA
Output voltage
24 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Logistics data
Harmonized System (HS) code
85299097
Technical details
Compliance certificates
RoHS
Weight & dimensions
Width
160 mm
Depth
437 mm
Height
43 mm
Weight
2 kg
Package width
292 mm
Package depth
525 mm
Package height
95 mm
Package weight
4 kg
Packaging content
Manual
Yes
Mounting brackets included
Yes
IR receiver included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Additional Information
| EAN/UPC | 0065030880800 |
|---|---|
| MPN | VS424HD4K60 |
| BRAND | STARTECH |
