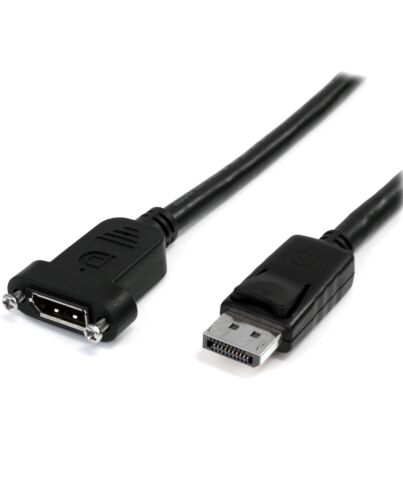

StarTech.com 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable
£15.32
StarTech.com 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable, 0.9 m, DisplayPort, DisplayPort, Male, Female, 4096 x 2160 pixels
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Allows a DisplayPort connection to be mounted on a secure easily accessible panel
The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.
The DPPNLFM3PW is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.
The DPPNLFM3PW is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
Key Features
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- SPECS: 3' (0.91m) / White / DisplayPort 1.2 / DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Double sided copper foil / Backward compatible w/ DP1.1 / Lifetime Warranty
Specifications
Features
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel
DisplayPort version
1.2
Maximum resolution*
4096 x 2160 pixels
Maximum refresh rate
60 Hz
Cable length*
0.9 m
Connector 1*
DisplayPort
Connector 2*
DisplayPort
Connector 1 gender*
Male
Connector 2 gender*
Female
Latching connectors
Yes
Product colour*
Black
Cable rating
CMG (CM)
Jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Bandwidth
21600 MB/s
Plug and Play
Yes
Multi-Stream Transport (MST)
Yes
Number of conductors
20
Operational conditions
Operating temperature (T-T)
-10 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 85%
Certificates
Compliance certificates
CE, RoHS
Weight & dimensions
Weight
83 g
Packaging data
Package width
200 mm
Package depth
220 mm
Package height
25 mm
Package weight
88 g
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
330 mm
Master (outer) case length
500 mm
Master (outer) case height
250 mm
Products per master (outer) case
120 pc(s)
Additional Information
| EAN/UPC | 0065030840866 |
|---|---|
| MPN | DPPNLFM3PW |
| BRAND | STARTECH |
