Components

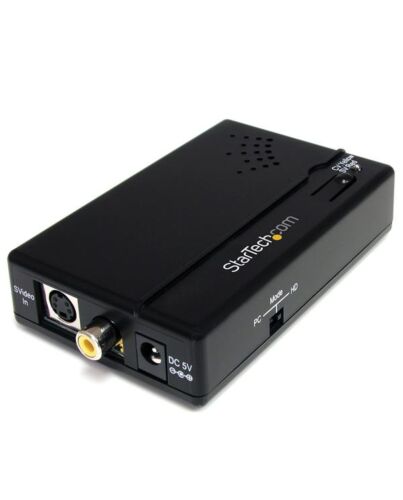

StarTech.com Composite and S-Video to HDMI Converter with Audio
£131.15
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI
The VID2HDCON Composite and S-Video to HDMI Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television.
Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display.
The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation
The VID2HDCON Composite and S-Video to HDMI Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television.
Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display.
The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation
Specifications
Features
Converter type*
Active video converter
Product colour
Black
Housing material
Plastic
Certification
CE, FCC, REACH
Video
Maximum video resolution*
1600 x 1200 pixels
Video resolutions
1024 x 768,1280 x 1024,1600 x 1200
Analog signal format system
NTSC, PAL
Ports & interfaces
Host interface*
Composite, S-Video
Output interface*
HDMI
3.5 mm connector
Yes
Power
External power adapter
Yes
Input voltage
100 - 240 V
Operating voltage
5 V
Operating current
1.2 A
Power consumption (typical)
2.5 W
Input current
0.3 A
Power plug type
Type M
Technical details
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
163 mm
Depth
164 mm
Height
34 mm
Weight
79 g
Packaging data
Included power plug types
ANZ, EU, JP, NA, UK
Package width
155 mm
Package depth
124 mm
Package height
56 mm
Package weight
310 g
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 0065030845274 |
|---|---|
| MPN | VID2HDCON |
| BRAND | STARTECH |
