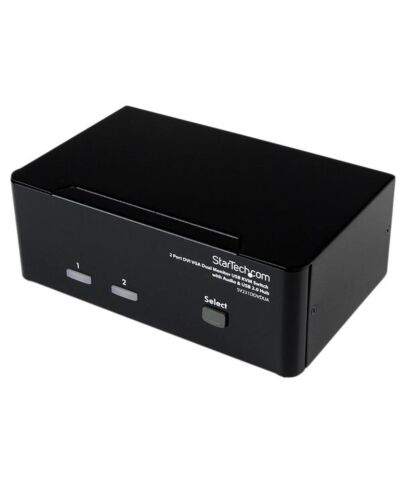

StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

£150.92
StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub, 1920 x 1200 pixels, WUXGA, 18 W, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers

The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.

With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.

Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.

Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.

Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

Ports & interfaces

Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
VGA/DVI-I
Console ports*
3.5mm headphone, DVI-I, VGA (D-Sub)
USB 2.0 ports quantity
4
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3

Performance

HD type*
WUXGA
Maximum resolution*
1920 x 1200 pixels
Maximum digital resolution
1920 x 1200 pixels
DDC2B support
Yes
HDCP
Yes
Daisy chain
No
Number of users
1 user(s)

Design

Rack mounting*
No
Product colour*
Black
Housing material
Steel
LED indicators
Power
Mean time between failures (MTBF)
64691 h
Certification
CE, FCC

Display

Built-in display*
No

Power

Input voltage
100-240 V
Input current
0.8 A
Output voltage
12 V

Power

Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
160 mm
Depth
163 mm
Height
57 mm
Weight
750 g

Packaging data

Package width
295 mm
Package depth
199 mm
Package height
72 mm
Package weight
1.29 kg

Packaging content

Manual
Yes
AC adapter included
Yes
Rubber feet
Yes

Other features

Audio support
Yes
IP control
No

Logistics data

Harmonized System (HS) code
85176200

Additional Information

More Information
EAN/UPC 0065030835725
MPN SV231DDVDUA
BRAND STARTECH
