StarTech.com AX54005A-USB-WIFI-6E network card WLAN 2402 Mbit/s

£68.18
StarTech.com AX54005A-USB-WIFI-6E, Wireless, USB, WLAN, 2402 Mbit/s, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Add 802.11ax Wi-Fi connectivity to a computer via USB with tri-band support for 2.4/5/6GHz frequencies

This USB Wi-Fi 6E Network Adapter connects to desktop or laptop computer enhancing its capabilities and enables high-speed and low-latency Wireless Products' target='_self' >wireless communication in the 6GHz band with combined tri-band speeds of up to 5400 Mbps.

Tri-Band Wireless

The USB Wi-Fi dongle with support for Wi-Fi 6/6E operating in this less congested 6Ghz frequency for reduced interference and enhanced speeds of up to 2402Mbps, ideal for latency-sensitive applications. The backward compatibility with 802.11 b, g, n, and ac wireless standards in both the 5GHz (2400Mbps) and 2.4GHz (574Mbps) bands ensures seamless integration with existing networks, allowing for smooth transitions and maximum flexibility.

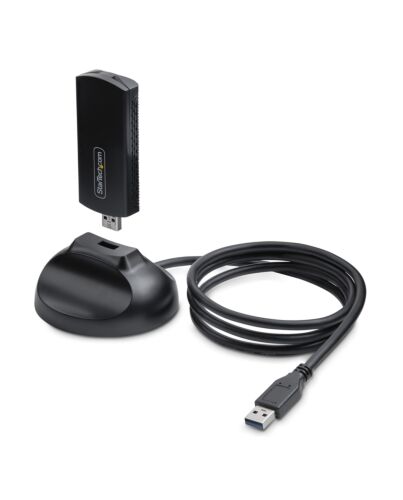

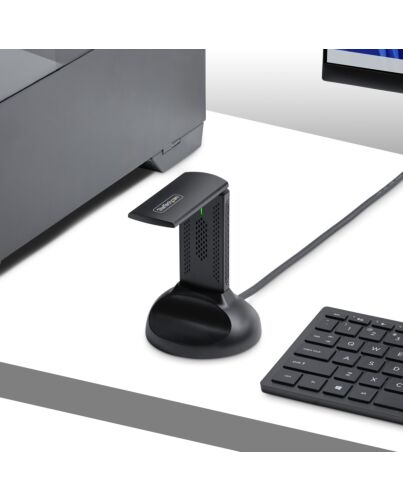

USB Cradle

The USB base is magnetized and is equipped with a 3.8ft (1.1m) built-in cable, allowing for flexible placement, which helps with signal reception and minimizes interference. In addition, the USB cradle is rubberized for improved grip when placed on flat, non-metallic surfaces.

The wireless NIC features a foldable antenna that helps improve signal quality and range as it enables to focus wireless signals directly to the device. Additionally, it adds convenience to mobile setups by maintaining a compact design when not in use.

Secure and Reliable

WPA3 provides strong encryption for Wi-Fi password security. OFDMA and MU-MIMO features enhance network performance by reducing latency and improving data transmission efficiency.

OFDMA optimizes data transmission by dividing channels into smaller sub-channels, reducing latency and increasing efficiency, especially in crowded environments. Meanwhile, MU-MIMO allows simultaneous data transmission to multiple devices, maximizing throughput and minimizing wait times.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology*
Wireless
Host interface*
USB
Interface*
WLAN
USB connector form factor
Straight

Network

Maximum data transfer rate*
2402 Mbit/s
Networking standards*
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi
Yes
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Modulation
256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms
AES, WEP, WPA, WPA2, WPA2-PSK, WPA3, WPS
Full duplex
Yes
MU-MIMO
Yes

Design

Component for*
PC
Product colour
Black
Internal*
No
Antenna
Yes
Antenna design
External
Chipset
Realtek RTL8832CU
LED indicators
Yes

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
37 mm
Depth
165 mm
Height
16 mm
Weight
36 g

Packaging data

Package width
143 mm
Package depth
175 mm
Package height
45 mm
Package weight
302 g

Packaging content

Quick installation guide
Yes

Technical details

Compliance certificates
RoHS

Other features

Housing material
Plastic
Cable length
1.155 m

Additional Information

More Information
EAN/UPC 0065030906166
MPN AX54005A-USB-WIFI-6E
