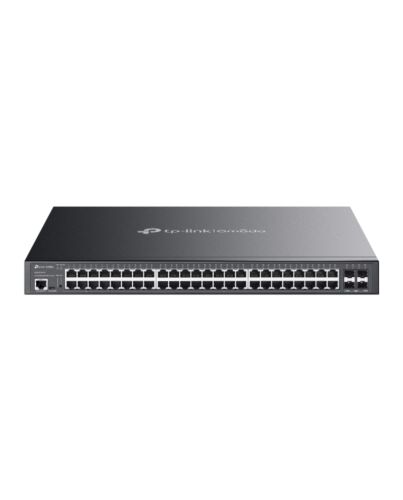

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethern
£851.80
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Key Features
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
Specifications
Management features
Switch type*
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
48
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
SFP+ ule slots quantity
4
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support*
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Data transmission
Switching capacity*
176 Gbit/s
Forwarding rate
130.9 Mpps
MAC address table*
16000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
12 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes
Static port security
Yes
SSH/SSL support
Yes
Security
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
ation
Auto VLAN, Guest VLAN
Multicast features
Multicast support
Yes
Design
Rack mounting*
Yes
Form factor
1U
Product colour
Black
Reset button
Yes
LED indicators
Yes
Number of fans
3 fan(s)
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
635.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
40
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
750 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
2169.2 BTU/h
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Packaging content
Cables included
AC
Quick start guide
Yes
Certificates
Certification
CE, FCC, RoHS
Additional Information
| EAN/UPC | 8885020620887 |
|---|---|
| MPN | SG3452XMPP |
| BRAND | TP-LINK |
