Middle Atlantic Products SRSR 23", 14U Wall mounted rack Black
£778.85
Middle Atlantic Products SRSR 23", 14U, Wall mounted rack, 14U, 90.72 kg, Rack rails, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

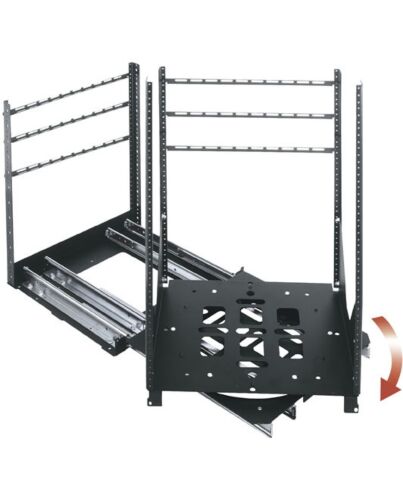

SRSR Series 19" Rotating Sliding Rail System. Specify an SRSR for rear access to equipment connections in millwork and cabinets. Available with a 19" or 23" useable depth, the SRSR system extends and rotates 90(0) in either direction, making it ideal for smaller millwork and in-wall installations.
- Pulls out and rotates for equipment servicing
- NEW Removable rack frame allows in-shop integration and on-site installation of equipment, saving time in the field
- Simplifies equipment installation in cabinet
- Shortens installation & service time
- Available in 19" and 23" useable depths
- Available f 12 space (21") to 24 space (42")
- Integral cable management system provided
- Locks in place at 0, 60, and 90 positions for easy installation and servicing
- Ball bearing slides allow smooth rollout
- Locks closed with included hardware
- Up to 300 pound weight capacity, depending on el
- Pulls out and rotates for equipment servicing
- NEW Removable rack frame allows in-shop integration and on-site installation of equipment, saving time in the field
- Simplifies equipment installation in cabinet
- Shortens installation & service time
- Available in 19" and 23" useable depths
- Available f 12 space (21") to 24 space (42")
- Integral cable management system provided
- Locks in place at 0, 60, and 90 positions for easy installation and servicing
- Ball bearing slides allow smooth rollout
- Locks closed with included hardware
- Up to 300 pound weight capacity, depending on el
Key Features
- Removable rack frame allows in-shop integration and on-site installation of equipment
- Locks in the extended position for simplified equipment integration
- Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
- Self-centering mounting base makes it simple to align system within cabinet opening
- Rear cable support works in conjunction with rear rackrail for effective cable management
- Standard front and rear 10-32 threaded rackrail with marked spaces
Specifications
Features
Rack capacity*
14U
Type*
Wall mounted rack
Maximum weight capacity*
90.72 kg
Product colour
Black
Material
Steel
Frame type
Open
Rack rails
Yes
Certification
Greenguard, LEED Contribution
Weight & dimensions
Size (imperial)
58.4 cm (23")
Weight & dimensions
Width
489 mm
Depth
591 mm
Height
697 mm
Inner depth
54 cm
Inner height
62.2 cm
Packaging data
Package weight
17.7 kg
Logistics data
Harmonized System (HS) code
85381000
Additional Information
| EAN/UPC | 656747047343 |
|---|---|
| MPN | SRSR-X-14 |
| BRAND | Middle Atlantic |
