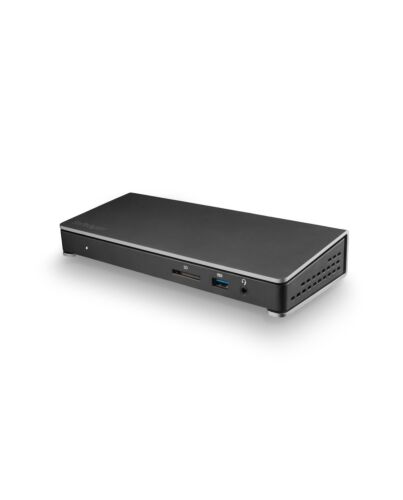

StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac

£134.35
StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 85 W, 3.5 mm, 10,100,1000 Mbit/s, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

• 1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

Plenty of Ports Including SD Card Reader

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery

Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:



Advanced Windows Layout Utility : To setup and save custom windows layouts.



Mac Address Pass-Through Utility : To improve network security.



USB Event Monitoring Utility : To track and log connected USB devices



Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key Features

  • HIGH-PERFORMANCE THUNDERBOLT 3 CERTIFIED DOCK: Easy Driverless setup; Thunderbolt 3 (40Gbps); Dual 4K 60Hz (DP + TB3) video output or single monitor 5K 30Hz; 5x USB Hub; SD 4.0 card reader, Gigabit Ethernet, headset port; 85W PD
  • COMPATIBILITY: Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M3 MacBook Air / Pro and M1 / M2 / M3 Max and Pro MacBooks; single Display on Apple M1 / M2 entry level MacBooks; Included USB-C to DP cable
  • MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected
  • FLEXIBLE THUNDERBOLT 3 PORT: Downstream TB3 port supports 3 modes of operation: 2nd monitor for dual 4K 60Hz video utilizing direct GPU performance with no software or compression, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories
  • OUR ADVANTAGE: Includes power adapter that simultaneously provides 85W of Power Delivery to charge the laptop & full power to all ports; Connectivity Tools w/Network MAC Address Pass-Through, Windows Layout and more

Specifications

Ports & interfaces

Connectivity technology*
Wired
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
5
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
85 W
DisplayPorts quantity
1
Thunderbolt 3 ports quantity
2
Combo headphone/mic port
Yes
Headphone outputs*
1
Headphone connectivity
3.5 mm

Network

Ethernet LAN*
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Full duplex
Yes

Performance

Card reader integrated*
Yes
Compatible memory cards
MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate
40 Gbit/s
Maximum digital resolution
5120 x 2880 pixels
Product colour*
Black
UASP support
Yes
Housing material
Aluminium
Certification
CE, FCC, REACH

Power

AC input voltage
100 - 240 V
Input current
2.5 A
Output voltage
20 V
Output current
9 A
Power consumption (standby)
180 W
Power plug type
Type N

Power

Compatible power plug types
EU, UK

Software

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
87 mm
Depth
222 mm
Height
34 mm
Weight
489 g

Packaging data

Package width
145 mm
Package depth
295 mm
Package height
90 mm
Package weight
1.5 kg

Packaging content

Cables included
AC, Thunderbolt, USB Type-C
AC adapter included
Yes
Manual
Yes

Logistics data

Products per master (outer) case
10 pc(s)
Master (outer) case width
310 mm
Master (outer) case length
480 mm
Master (outer) case height
314 mm
Harmonized System (HS) code
84733020

Other features

Chipset
Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226

Additional Information

More Information
EAN/UPC 0065030870726
MPN TB3DOCK2DPPU
