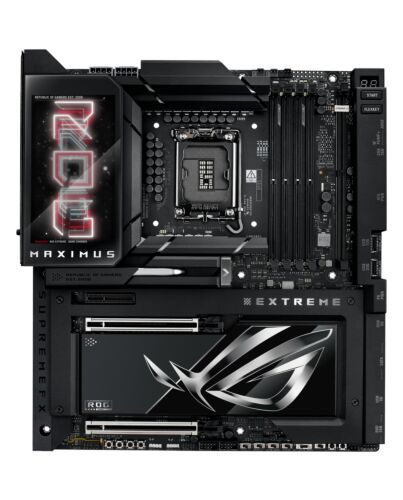

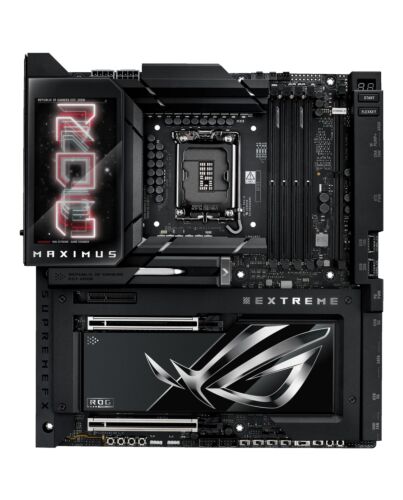

ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX
£1,359.67
ASUS ROG MAXIMUS Z890 EXTREME, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 192 GB, DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ROG Maximus Z890 Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 ules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 ules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel Core Ultra (Series 2)
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8800 MHz
Maximum internal memory*
192 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Rear panel I/O ports
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
Intel Z890
Audio chip
tek ALC4082
Audio output channels*
7.1 channels
Product colour
Black
Component for*
PC
Motherboard form factor*
Extended ATX
Motherboard chipset family*
Intel
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
6
BIOS
BIOS type*
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes
Packaging data
Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.73 kg
Weight & dimensions
Width
305 mm
Depth
277 mm
Additional Information
| EAN/UPC | 4711387754153 |
|---|---|
| MPN | 90MB1IA0-M0EAY0 |
| BRAND | ASUS |
