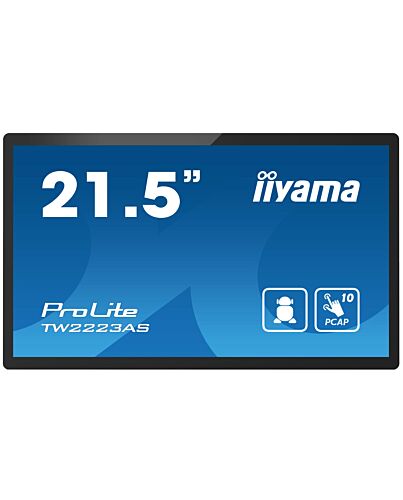

iiyama TW2223AS-B2 Signage Display Interactive flat panel 54.6 cm (21.5") Wi-Fi 345 cd/m² Full HD Bl
£327.19
iiyama TW2223AS-B2, Interactive flat panel, 54.6 cm (21.5"), 1920 x 1080 pixels, Wi-Fi, 24/7
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
Reasons To Buy
Touch technology - Capacitive
Android OS
Full HD
24/7
Speakers
Specifications
Display
Panel type
VA
Display diagonal*
54.6 cm (21.5")
Display resolution*
1920 x 1080 pixels
Display brightness*
345 cd/m²
HD type*
Full HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
16:9
Response time
18 ms
Contrast ratio (typical)
3000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.248 x 0.248 mm
Active display area (W x H)
478 x 269.5 mm
Display diagonal (metric)
54.6 cm
Horizontal scan range
30 - 84 kHz
Surface hardness
6H
Glass thickness
2.9 mm
Ports & interfaces
HDMI ports quantity*
1
HDMI input ports quantity
1
USB port*
Yes
USB ports quantity
5
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports
1
Card reader integrated
Yes
Compatible memory cards
SD
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
4 W
Design
Product design*
Interactive flat panel
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Bezel colour
Black
Performance
Purpose*
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
23 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Computer system
Computer system*
Yes
Built-in processor*
Yes
Processor family
ARM Rockchip
Processor el
RK3399
Processor frequency
1.8 GHz
Computer system
Processor cores
2
Internal memory
4 GB
On-board graphics card el
ARM Mali-T860 MP4
Internal storage capacity
32 GB
Operating system installed
Android
Operating system version
12
Google applications
Google Che, Gmail, Google Calendar
Weight & dimensions
Display width
504.5 mm
Display depth
32 mm
Display height
302 mm
Display weight
3.61 kg
Width
504.5 mm
Depth
32 mm
Height
302 mm
Weight
3.61 kg
Width (with stand)
504.5 mm
Depth (with stand)
32 mm
Height (with stand)
302 mm
Weight (with stand)
3.61 kg
Packaging data
Package width
640 mm
Package depth
121 mm
Package height
410 mm
Package weight
5.98 kg
Packaging content
Cables included
AC
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
Audio out (mini jack)
1
User controls
Power switch
Sustainability certificates
ErP
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Display brightness (peak)
400 cd/m²
Quick start guide
Yes
AC adapter included
Yes
Bluetooth
Yes
Bluetooth version
5.2
Digital horizontal frequency
30 - 84 kHz
Viewable size, horizontal
47.8 cm
Viewable size, vertical
26.9 cm
Height (without stand)
302 mm
Weight (without stand)
3.61 kg
Brightness
345 cd/m²
Depth (without stand)
32 mm
Power supply type
External
Cable management
Yes
Built-in camera
No
Additional Information
| EAN/UPC | 4948570124787 |
|---|---|
| MPN | TW2223AS-B2 |
| BRAND | Iiyama |
