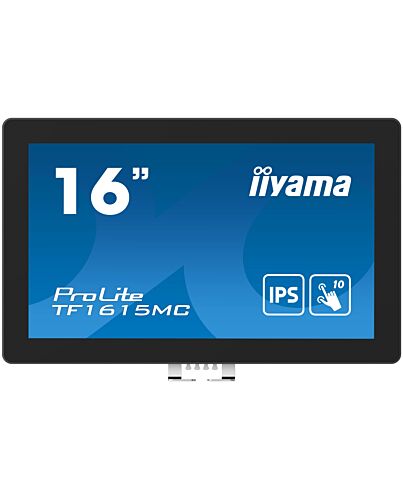

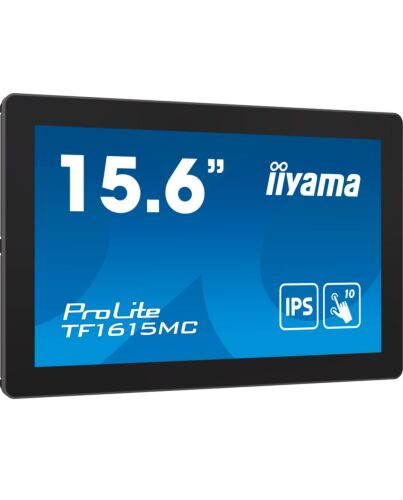

iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function
£379.73
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance f the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Reasons To Buy
Touch Through-Glass

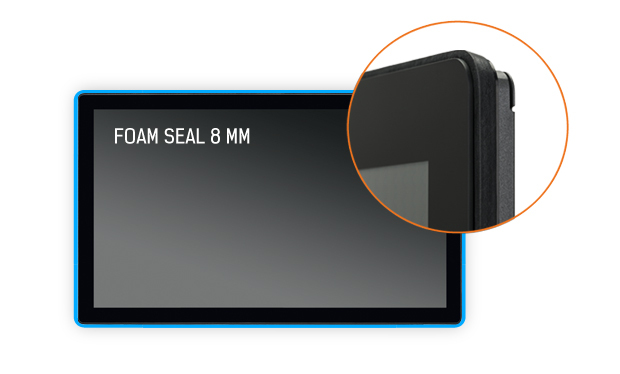

Foam Seal
Touch technology - Capacitive

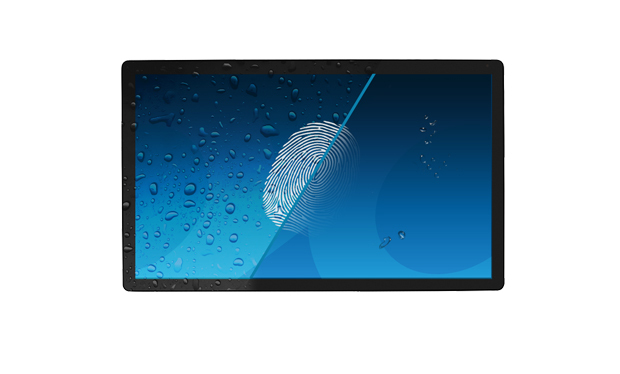

Anti-fingerprint coating

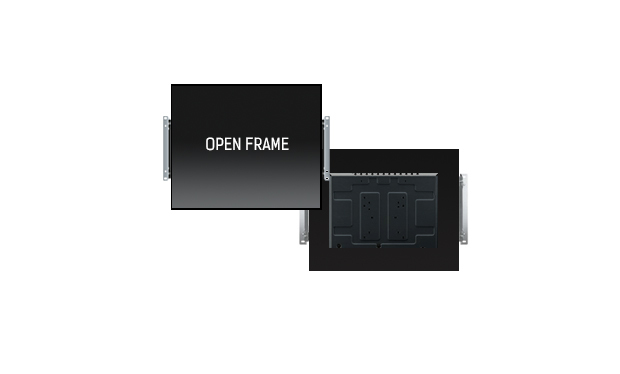

Open frame brackets
Specifications
Display
Display diagonal*
39.6 cm (15.6")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Panel type*
IPS
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Display brightness (peak)
450 cd/m²
Display brightness (typical)
450 cd/m²
Response time*
25 ms
Screen shape*
Flat
Aspect ratio
16:9
Contrast ratio (typical)*
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.17925 x 0.17925 mm
Horizontal scan range
31.5 - 67.5 kHz
Viewable size, horizontal
34.5 cm
Viewable size, vertical
19.5 cm
Display diagonal (metric)
39.5 cm
Surface hardness
7H
Design
Market positioning*
Business
Product colour*
Black
Front bezel colour
Black
Ports & interfaces
Built-in USB hub*
Yes
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI*
Yes
DisplayPorts quantity
1
Headphone out*
Yes
HDCP
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
On Screen Display (OSD)
Yes
Ergonomics
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR)*
E
Energy efficiency class (HDR)*
Not available
Energy consumption (SDR) per 1000 hours*
11 kWh
Power consumption (typical)*
18 W
Power consumption (standby)*
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1355204
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width (with stand)
398.5 mm
Depth (with stand)
42 mm
Height (with stand)
246 mm
Weight (with stand)
2.5 kg
Width (without stand)
398.5 mm
Depth (without stand)
42 mm
Height (without stand)
246 mm
Weight (without stand)
2.5 kg
Packaging data
Package width
470 mm
Package depth
470 mm
Package height
145 mm
Package weight
4.3 kg
Package type
Box
Packaging content
Cables included
DC, DisplayPort, HDMI
Power adapter included
Yes
Quick start guide
Yes
Other features
International Protection (IP) code
IP65
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Additional Information
| EAN/UPC | 4948570121793 |
|---|---|
| MPN | TF1615MC-B1 |
| BRAND | Iiyama |
