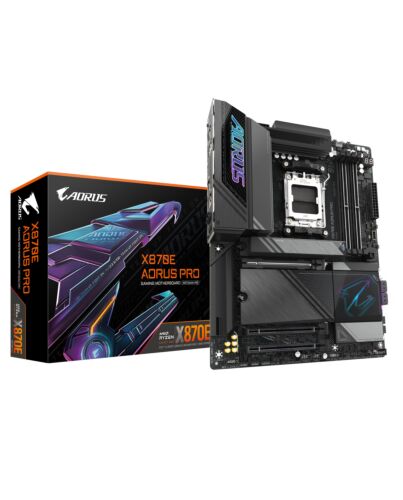

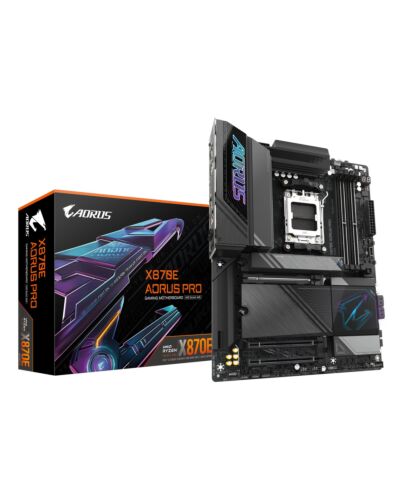

GIGABYTE X870E AORUS PRO Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, USB 4
£310.84
GIGABYTE X870E AORUS PRO Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0,Wi-Fi 7, 2.5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with 80A Smart Power Stage
- Dual Channel DDR5：4DIMMs with AMD EXPO & Intel XMP Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- M.2 Gen5 with EZ-Latch Plus
- Efficient Overall Thermal: Fully Covered MOSFET Heatsinks
- Extended Connectivity: HDMI, Sensor Panel Link ( Front HDMI), 2*USB-C DP
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with WIFI EZ-Plug & Directional Antenna
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Maximum internal memory supported by processor
256 GB
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4400,4800,5600,6000,6400,6600,6666,6800,7000,7200,7800,8000,8200 MHz
Supported memory clock speed (max)
8200 MHz
Maximum internal memory*
256 GB
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPort version
1.4
Headphone outputs
1
Microphone in
Yes
S/PDIF out port
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
Qualcomm QCNCM865
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
AMD X870E
Audio chip
Realtek ALC1220
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x4 slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
4
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.74 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
2.4 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331864866 |
|---|---|
| MPN | X870E AORUS PRO |
| BRAND | Gigabyte |
