Computers

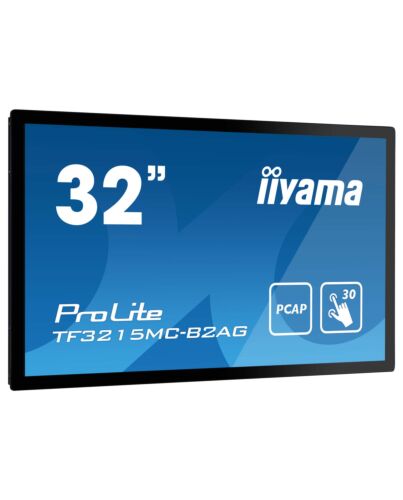

iiyama ProLite Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration
£819.72
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Reasons To Buy
Touch technology - Capacitive

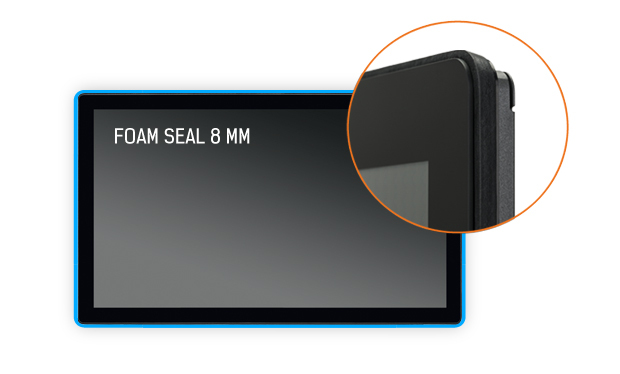

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.Foam Seal
Ball-drop-test proof
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.24/7
24/7 displays are designed for a continuous operation.Specifications
Display
Display diagonal*
80 cm (31.5")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Display technology*
LED
Panel type*
VA
Touchscreen*
Yes
Touchscreen type
Kiosk
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
30
Display brightness (typical)
500 cd/m²
Response time*
8 ms
Anti-glare screen
Yes
Screen shape*
Flat
Contrast ratio (typical)*
3000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours*
16.7 million colours
Pixel pitch
0.3637 x 0.3637 mm
Viewable size, horizontal
69.8 cm
Viewable size, vertical
39.3 cm
Digital horizontal frequency
30 - 68 kHz
Display diagonal (metric)
80 cm
Surface hardness
6H
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Operating hours (hours/days)
24/7
Design
Market positioning*
Business
Product colour*
Black
Housing material
Metal
Glass thickness
6 mm
Ports & interfaces
Built-in USB hub*
No
VGA (D-Sub) ports quantity
1
HDMI*
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Ports & interfaces
HDCP
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
200 x 200 mm
Cable management
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
Plug and Play
Yes
Power
Energy efficiency class (SDR)*
F
Energy efficiency class (HDR)*
Not available
Energy consumption (SDR) per 1000 hours*
27 kWh
Power consumption (typical)*
32 W
Power consumption (standby)*
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width (without stand)
745.5 mm
Depth (without stand)
61 mm
Height (without stand)
437 mm
Weight (without stand)
10 kg
Packaging data
Package width
890 mm
Package depth
155 mm
Package height
630 mm
Package weight
12.8 kg
Packaging content
Cables included
AC, HDMI, USB
Quick start guide
Yes
Other features
International Protection (IP) code
IP65
IK code
IK07
Compliance certificates
REACH
Additional Information
| EAN/UPC | 4948570123674 |
|---|---|
| MPN | TF3215MC-B2AG |
| BRAND | Iiyama |
