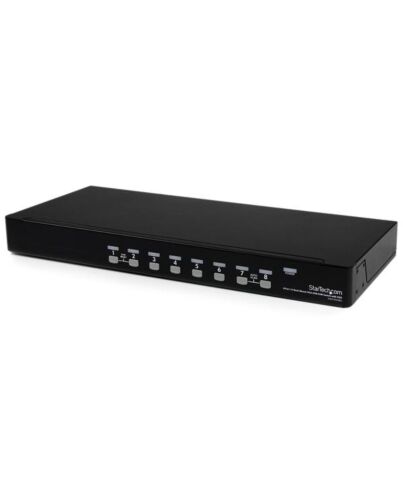

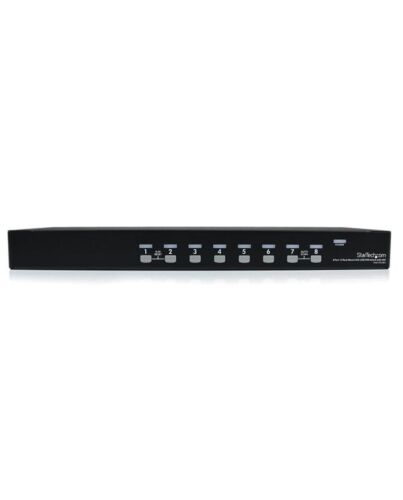

StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD
£322.49
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Control up to 8 VGA and USB computers f a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers f a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers f this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes f the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers f a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers f this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes f the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment
Specifications
Ports & interfaces
Number of computers controlled*
8
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
VGA
VGA (D-Sub) ports quantity
9
Console ports*
USB A, VGA (D-Sub)
Console USB ports quantity
2
Audio connections
No
DC-in jack
Yes
Performance
Maximum resolution*
1920 x 1440 pixels
Plug and Play
Yes
Daisy chain
Yes
Design
Rack mounting*
Yes
Rack capacity
1U
Product colour*
Black
Housing material
Steel
LED indicators
Yes
Mean time between failures (MTBF)
150000 h
Certification
CE, FCC, TAA, REACH
Display
Built-in display*
No
On Screen Display (OSD)
Yes
Power
Input voltage
100 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power plug type
Type M
Compatible power plug types
EU, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
540 mm
Depth
180 mm
Height
45 mm
Weight
2.9 kg
Packaging data
Package width
89 mm
Package depth
573 mm
Package height
268 mm
Package weight
3.3 kg
Packaging content
Manual
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
Connectivity technology
Wired
Dimensions (WxDxH)
540 x 180 x 45 mm
Ports quantity
8
Power requirements
110 - 240 AC
Audio support
No
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Additional Information
| EAN/UPC | 0065030837255 |
|---|---|
| MPN | SV831DUSBU |
| BRAND | STARTECH |
