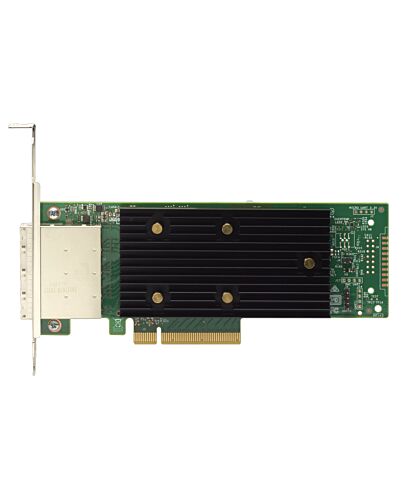

Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA
£546.06
Lenovo 7Y37A01091, PCIe, SAS, SATA, Full-height / Low-profile, PCIe 3.0, Black, Green, FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe...
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lenovo ThinkSystem 430-8e and 430-16e SAS/SATA 12Gb HBAs are high performance host bus adapters for external storage connectivity in ThinkSystem servers. The 430-8e provides two x4 external mini-SAS HD connectors with eight lanes of 12 Gbps SAS. The 430-16e provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.
This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
Key Features
- PCIe 3.0 x8 host interface
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
- PCI low profile, half-length form factor
- External 12 Gbps SAS/SATA ports:
- 430-8e: 8 SAS/SATA ports
- 430-16e: 16 SAS/SATA ports
- Connectivity for up to 512 external SAS or SATA drives (future planned support for an upper limit of 1024 drives)
- Up to 12 Gbps throughput per port
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 6 or 3 Gbps SATA speeds
- External x4 HD Mini-SAS connectors (SFF-8644):
- 430-8e: 2 external connectors
- 430-16e: 4 external connectors
- Support for external storage systems and tape backup units
- High performance architecture with very deep queue depth
- Advanced power management support
- Support for SSP, SMP, STP, and SATA protocols
- End-to-End CRC with Advanced Error Reporting
- Spread Spectrum Clocking for EMI reductions
- Supports 512e, 512n and 4K (when available) formatted drives
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- S.M.A.R.T. support
- Configuration through
- XClarity Provisioning Manager UEFI interface
- XClarity Controller web interface
- XClarity Administrator Configuration Patterns
- StorCLI command-line interface
- LSI Storage Authority (LSA) GUI interface
- UEFI Human Interface Infrastructure (HII)
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
SAS, SATA
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCIe 3.0
External mini-SAS HD ports
4
Design
Internal*
Yes
Product colour
Black, Green
Certification
FCC Part 15 Class A
Australia/New Zealand (AS/NZS CISPR 22)
Canada (ICES-003 Class B)
Europe (EN55022/EN55024)
Japan (VCCI V-3)
Korea (RRA no 2013-24 & 25)
WEEE
EN/IEC/UL 60950
Taiwan (CNS 13438)
USA (FCC 47 CFR part 15 Subpart B class B)
Features
Data transfer rate (max)
12000 Gbit/s
Operational conditions
Operating temperature (T-T)
10 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
20 - 90%
Storage relative humidity (H-H)
5 - 95%
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
84733020
Other features
Compatible operating systems
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2016
Red Hat Enterprise Linux 6 Server x64 Edition
Red Hat Enterprise Linux 7
SUSE Linux Enterprise Server 11 for AMD64/EM64T
SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
SUSE Linux Enterprise Server 12
SUSE Linux Enterprise Server 12 with XEN
VMware vSphere ESXi 6.0
VMware vSphere ESXi 6.5
Compatibility
SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
Additional Information
| EAN/UPC | 889488433520 |
|---|---|
| MPN | 7Y37A01091 |
| BRAND | LENOVO |
