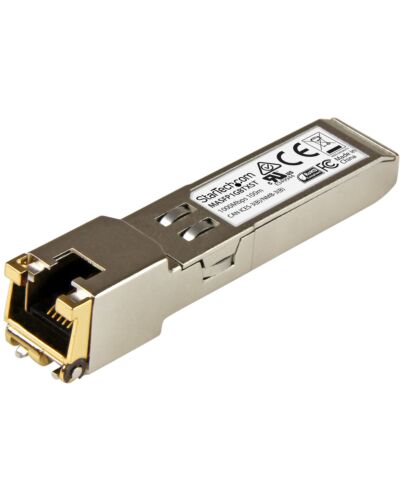

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250
£40.31
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key Features
- 100% CISCO MERAKI MA-SFP-1GB-TX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- TECHNICAL SPECS: 10BASE-T / 1 Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Specifications
Performance
SFP transceiver type*
Copper
Maximum data transfer rate*
1000 Mbit/s
Interface type*
SFP
SFP transceiver standard
TX
Maximum transfer distance
100 m
Ethernet LAN
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN (RJ-45) ports
1
Duplex system
Full
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Digital Diagnostics Monitoring (DDM)
No
Features
Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Mean time between failures (MTBF)
4655371 h
Power
Power consumption (typical)
1.3 W
Certificates
Compliance certificates
CE, RoHS
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
18 mm
Depth
68 mm
Height
13.8 mm
Weight
21 g
Packaging content
Quantity per pack
1 pc(s)
Packaging data
Package width
118 mm
Package depth
93 mm
Package height
35 mm
Package weight
51 g
Logistics data
Master (outer) case width
260 mm
Master (outer) case length
305 mm
Harmonized System (HS) code
85369010
Master (outer) case height
205 mm
Products per master (outer) case
36 pc(s)
Country of origin
China
Additional Information
| EAN/UPC | 0065030869461 |
|---|---|
| MPN | MASFP1GBTXST |
| BRAND | STARTECH |
