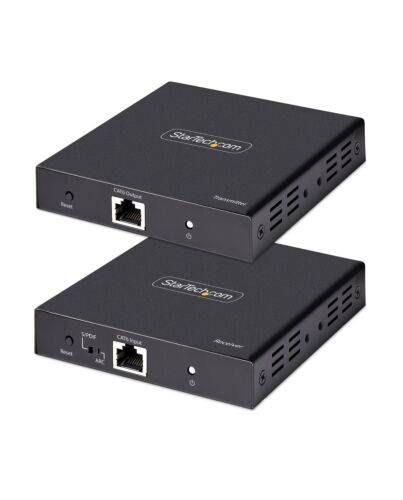

StarTech.com 4K70IC-EXTEND-HDMI AV extender AV transmitter & receiver Black
£181.80
StarTech.com 4K70IC-EXTEND-HDMI, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz
This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable
Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.
Versatile Installation Options
The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.
Power-Over-Cable
Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.
Versatile Installation Options
The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
High Dynamic Range (HDR) supported
Yes
Maximum refresh rate
60 Hz
Audio output channels
7.1 channels
Electrostatic Discharge (ESD) protection
Yes
Electrostatic Discharge (ESD) protection
8 kV
LED indicators
Yes
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
HDCP
Yes
Material
Metal
Rack mounting
No
Plug and Play
Yes
Daisy chain
Yes
Rubber feet
Yes
HDCP version
2.2
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
HDMI version
2.0
Digital audio optical out
1
Remote (IR) input
1
Remote (IR) output
1
DC-in jack
Yes
Power
AC input voltage
100 - 240 V
Input current
0.3 A
Operating voltage (transmitter)
12 V
Power
Output current
1 A
Power consumption (typical)
0.1 W
External power adapter
Yes
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
99 mm
Depth
106 mm
Height
26 mm
Weight
210 g
Packaging data
Package width
240 mm
Package depth
176 mm
Package height
80 mm
Package weight
900 g
Packaging content
AC adapter included
Yes
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Mounting kit
Yes
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
380 mm
Master (outer) case length
270 mm
Master (outer) case height
420 mm
Products per master (outer) case
10 pc(s)
Additional Information
EAN/UPC | 0065030899208 |
---|---|
MPN | 4K70IC-EXTEND-HDMI |
BRAND | STARTECH |
