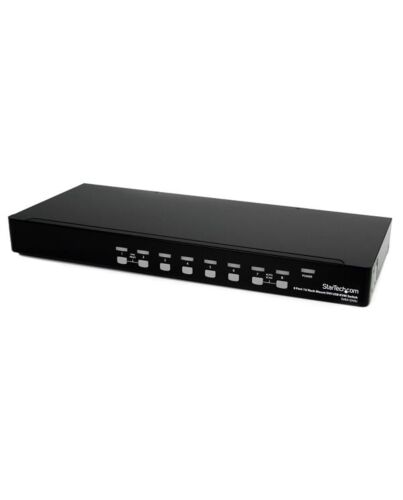

StarTech.com 8 Port 1U Rackmount DVI USB KVM Switch
£710.65
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
- High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The StarTech.com Advantage
- High-resolution 1920x1200 DVI connections support control of DVI systems or HDMI systems (with adapter)
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
Specifications
Ports & interfaces
Number of computers controlled*
8
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DVI-I
USB 2.0 ports quantity
10
Audio connections
No
Network
Ethernet LAN
No
Performance
Maximum resolution*
1920 x 1200 pixels
Maximum analog resolution
1920 x 1200 pixels
Daisy chain
No
Design
Rack mounting*
Yes
Rack capacity
1U
Product colour*
Black
Housing material
Steel
LED indicators
Yes
Hot keys
Yes
Mean time between failures (MTBF)
45254 h
Certification
CE, FCC
Power
Input voltage
100-240 V
Input current
1.8 A
Output voltage
12 V
Output current
4 A
External power adapter
Yes
Power
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
438 mm
Depth
180 mm
Height
44 mm
Weight
3.5 kg
Packaging data
Package width
265 mm
Package depth
595 mm
Package height
90 mm
Package weight
3.77 kg
Packaging content
Manual
Yes
Rack mount kit
Yes
Other features
IP control
Yes
Logistics data
Harmonized System (HS) code
85176200
Additional Information
| EAN/UPC | 0065030842303 |
|---|---|
| MPN | SV831DVIU |
| BRAND | STARTECH |
