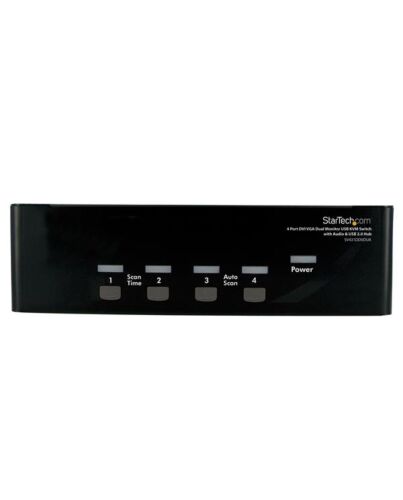

StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
£286.51
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
VGA/DVI-I
DVI-I ports quantity
5
VGA (D-Sub) ports quantity
5
Console ports*
3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
Console USB ports quantity
4
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
DC-in jack
Yes
Performance
Maximum resolution*
1920 x 1200 pixels
Daisy chain
No
Number of users
1 user(s)
Design
Product colour*
Black
Housing material
Steel
LED indicators
Yes
Hot keys
Yes
Mean time between failures (MTBF)
140000 h
Certification
CE, FCC, UL, REACH
Display
Built-in display*
No
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
0.8 A
Output voltage
12 V
Power
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
220 mm
Depth
163 mm
Height
60 mm
Weight
1.3 kg
Packaging data
Package width
295 mm
Package depth
249 mm
Package height
86 mm
Package weight
1.8 kg
Packaging content
Manual
Yes
AC adapter included
Yes
Rubber feet
Yes
Other features
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Additional Information
| EAN/UPC | 0065030835701 |
|---|---|
| MPN | SV431DDVDUA |
| BRAND | STARTECH |
