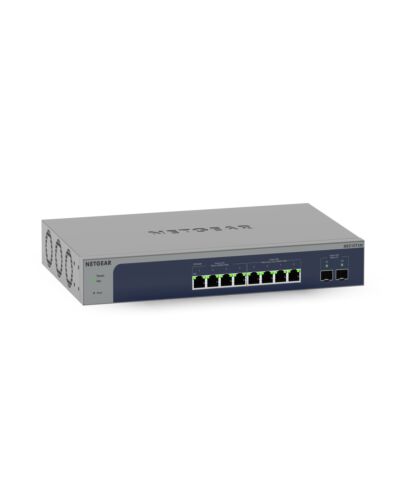

NETGEAR MS510TXM network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Grey, Blue
£492.40
NETGEAR MS510TXM, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-Gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. It is the ideal companion to the NETGEAR WAX610PA WiFi 6 Access Point that features a 2.5G Ethernet port and a power adapter.
MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.
Specifications
Management features
Switch type*
Managed
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
2
Network
Networking standards*
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support*
Yes
Copper ethernet cabling technology
1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s
VLAN support
Yes
Number of VLANs
256
Data transmission
Switching capacity*
140 Gbit/s
MAC address table*
32000 entries
Jumbo frames support
Yes
Jumbo frames
10000
Security
DHCP features
DHCP client, DHCP server
Access Control List (ACL)
Yes
Access Control List (ACL) ingress
100
IGMP snooping
Yes
Security
Security algorithms
HTTPS, SSL/TLS
Loop protection
Yes
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP v1/v2c,SNMP v3
Design
Rack mounting*
Yes
Product colour
Grey, Blue
LED indicators
Activity, Power, Speed
Performance
Built-in processor
Yes
Processor frequency
1000 MHz
Internal memory
256 MB
Flash memory
64 MB
Power
Power supply included*
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Weight & dimensions
Width
330 mm
Depth
206 mm
Height
43 mm
Additional Information
| EAN/UPC | 606449152364 |
|---|---|
| MPN | MS510TXM-100EUS |
| BRAND | Netgear |
